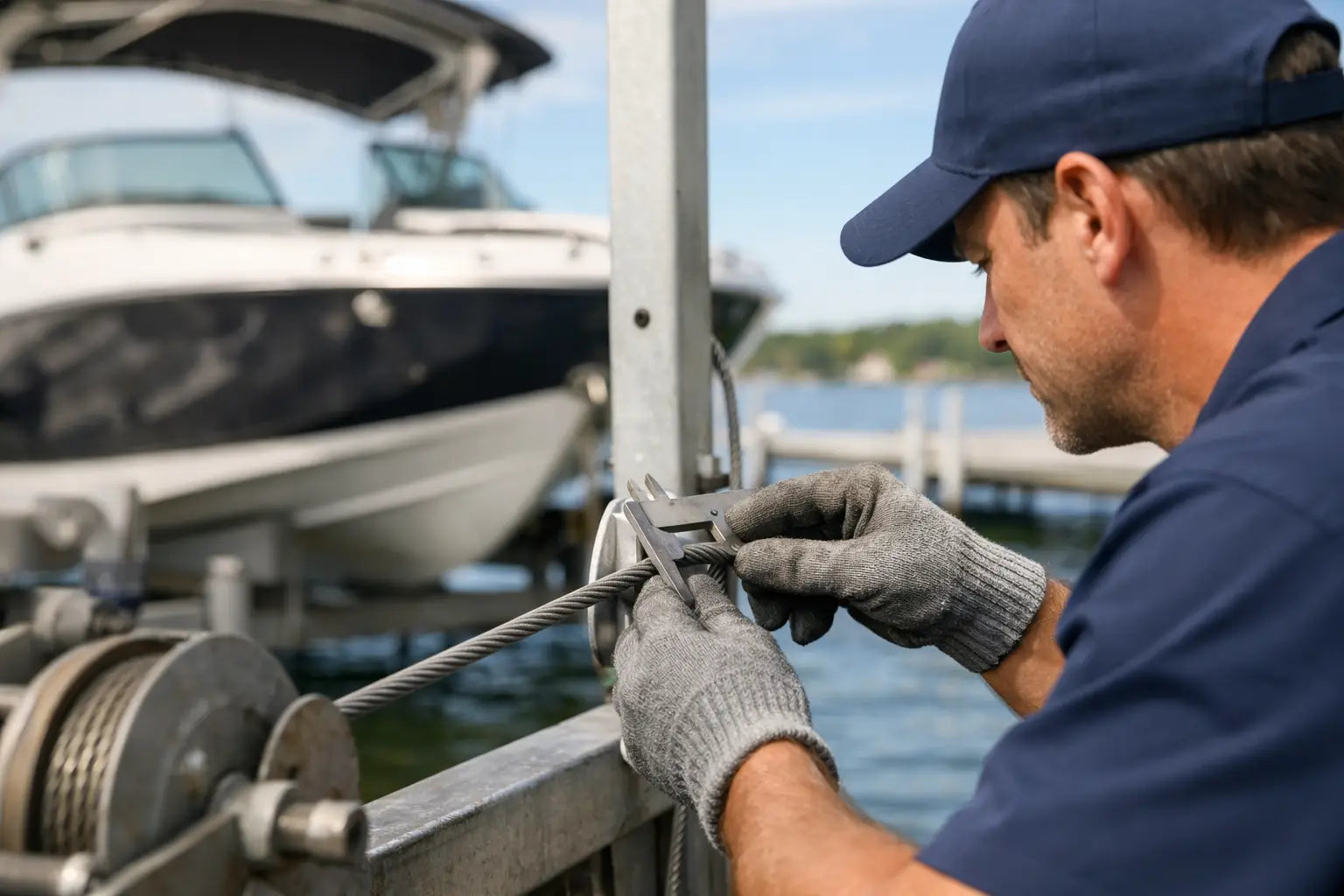

Boat Lift Cable Inspection Before Launch Day

A boat lift cable inspection is one of the most valuable habits on a waterfront property. The cables carry the full working load of your boat and lift system every time you raise or lower the cradle. A cable can look acceptable from a distance while broken strands, corrosion, flattened areas, or poor drum winding are already reducing its safe service life.

The goal is not to turn every owner into a lift technician. It is to spot warning signs early, keep the lift operating predictably, and know when a cable needs professional attention or replacement. A few minutes before the season starts - and regular checks while the lift is in use - can help protect your boat, your equipment, and the days you planned to spend on the water.

Start With a Safe Boat Lift Cable Inspection

Before touching a cable, lower the boat to a stable, supported position or remove the boat from the lift when practical. Turn off power at the disconnect or breaker so nobody can operate the lift during the inspection. If your system uses a wireless remote, make sure it is secured where it cannot be activated accidentally.

Never place hands near a moving drum, cable, pulley, or gear plate. Do not stand beneath a suspended boat or cradle, even if the lift appears to be holding normally. Cables, connections, and lift hardware operate under substantial tension. A careful inspection is useful only when it is performed without creating a new hazard.

Use good daylight and move slowly along the exposed length of each cable. A clean rag can help reveal surface condition, but wear gloves and do not run a bare hand along the wire rope. Broken wire ends can be sharp enough to cut through skin quickly.

What to Look for on Lift Cables

The most obvious warning sign is a broken wire strand, often called a fishhook. It may appear as a short piece of wire projecting from the cable surface. One isolated broken wire does not always mean immediate failure, but it is a reason to inspect the surrounding area closely and monitor the cable more often. Multiple broken wires concentrated in one section are a clear sign that replacement should be planned promptly.

Corrosion deserves the same attention. Surface discoloration may be manageable on some galvanized cable, especially in a freshwater setting, but rust that is heavy, flaky, or embedded between strands is more concerning. Saltwater, brackish water, fertilizer runoff, and long periods of damp storage can accelerate corrosion. Stainless steel cable offers strong corrosion resistance in the right application, but it is not immune to wear, abrasion, or damage from improper hardware.

Also look for flattened sections, kinks, crushed areas, birdcaging, or a cable that appears unusually loose or distorted. Birdcaging occurs when strands separate and flare outward, often after shock loading, incorrect winding, or a sudden release of tension. A kink permanently weakens wire rope. Do not attempt to straighten a kinked cable and put it back into service.

Pay close attention to where the cable passes over sheaves and where it attaches to the lift frame or cradle. These high-contact points are common locations for wear. A cable that rubs against a sharp edge, misaligned pulley, bracket, or cross member can deteriorate much faster than the rest of the system.

Check the Drum and Cable Winding

The cable drum is easy to overlook because it is often positioned near the motor and drive components. Yet poor winding can create uneven lifting, cable overlap, and accelerated wear. With the lift unloaded or in a safe inspection position, observe how the cable lays across the drum.

The wraps should be orderly and should not pile up heavily on one side. Crossed wraps, loose coils, or cable that rides against a drum flange may point to an alignment problem, uneven lift operation, or a cable that was allowed to go slack. When a cable overlaps itself under load, the upper wrap can pinch and damage the lower wrap. That damage may not be visible until the cable is unwound.

Uneven winding can also be a symptom rather than the root cause. Inspect the pulley alignment, sheave condition, and lift leveling. If one corner of a cradle rises faster than another, stop using the lift until you understand why. The issue could involve cable length, a worn sheave, an attachment point, or a mechanical problem in the drive system.

Inspect Pulleys, Sheaves, and Attachment Points

A healthy cable cannot stay healthy for long if it runs through damaged hardware. Rotate accessible sheaves by hand only when the system is powered down and unloaded. They should turn smoothly without severe wobble, grinding, or binding. Look for cracked sheaves, worn grooves, missing retainers, and pulley brackets that have shifted out of alignment.

Examine cable clamps, thimbles, swaged ends, shackles, and attachment bolts for corrosion, elongation, looseness, or deformation. Never assume a cable issue is limited to the cable itself. A worn sheave groove can cut into wire rope, while a loose attachment can change the cable angle and create uneven load distribution.

For lifts with multiple cables, compare them. Differences in visible wear, tension, winding, or corrosion can help identify a leveling or alignment issue before it becomes a larger repair.

How Often Should You Inspect Boat Lift Cables?

A quick visual check should be part of normal lift use. Look at the exposed cable sections whenever you are loading a boat, especially after a storm, a period of nonuse, or an unusual lifting event. If the lift makes a new sound, raises unevenly, hesitates, or leaves the boat sitting out of level, inspect it before the next cycle.

A more complete boat lift cable inspection makes sense at least at the start of boating season and again before winter storage. High-use lifts, larger boats, coastal installations, rental properties, and lifts exposed to salt or brackish water may need more frequent attention. The right interval depends on the lift design, cable material, environment, usage, and the manufacturer’s maintenance guidance.

Keep a simple maintenance record with inspection dates, observations, and replacement dates. This is particularly helpful when several family members use the lift or when a service professional handles periodic maintenance. It also makes recurring issues easier to recognize, such as a cable that continually winds to one side of the drum.

When Replacement Is the Better Decision

Cable replacement is not a place to stretch service life. Replace the cable if you find significant broken strands, kinks, birdcaging, severe corrosion, crushed sections, or damage at a termination point. If the cable’s condition is uncertain, a qualified lift technician can assess the system and recommend the correct replacement specification.

Match the replacement cable to the lift manufacturer’s requirements for diameter, construction, length, material, and rated capacity. A cable that looks similar may not have the correct strength, flexibility, or compatibility with the existing drum and sheaves. Replacing only one cable on a multi-cable system can also create leveling concerns, depending on the lift design and the condition of the remaining cables.

This is a good time to inspect related components such as the motor, switch, wiring, gear plate, pulleys, and auto-stop system. A reliable direct-drive or belt-drive system still depends on properly routed, properly rated cables to transfer lifting force safely. If you are upgrading controls with a wireless remote or auto-stop feature, make cable condition part of the same project rather than treating it as a separate task.

Protect the Cable Between Inspections

Keeping the lift properly adjusted does more for cable life than spraying on a product after wear has started. Avoid shock loading by raising and lowering the boat smoothly. Keep the boat centered in the cradle, and do not exceed the lift’s rated capacity with fuel, gear, water, and accessories included.

Prevent slack cable whenever possible. Slack can allow wraps to cross or jump on the drum, creating damage the next time the lift is loaded. If a storm, wave action, or obstruction causes the boat or cradle to shift, check the lift before returning it to normal operation.

Use only cable lubricants or protectants approved by the lift manufacturer. Some products attract grit, trap moisture, or make it harder to identify broken wires. Freshwater rinsing may help remove salt and debris in coastal environments, but it does not replace a hands-on inspection of the wire rope and hardware.

A boat lift should make arriving at the dock feel simple: pull in, secure the boat, raise it with confidence, and get back to enjoying the shoreline. Treat the cables as the load-bearing equipment they are, and address small signs of wear before they have a chance to interrupt that routine.
