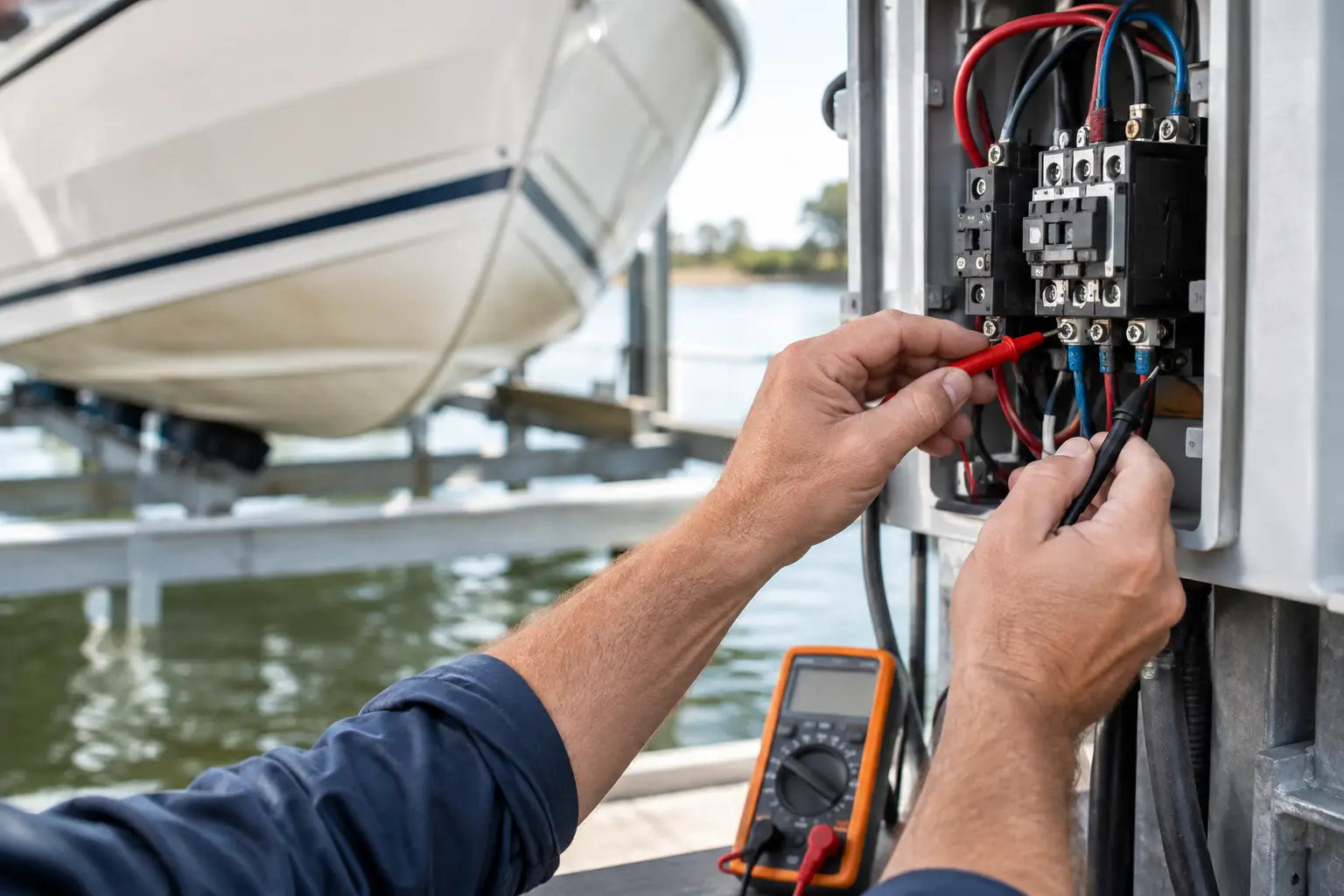

Boat Lift Contactor Testing for Reliable Repairs

A lift that will not move, only runs one direction, or hums without raising the boat can turn a perfect lake day into a dockside troubleshooting session. Boat lift contactor testing helps separate a control problem from a motor, capacitor, wiring, or mechanical issue - so you can repair the right component instead of replacing parts by guesswork.

A contactor handles the high-amperage power needed by the lift motor. When you press UP or DOWN on a wired switch or wireless remote, the control circuit energizes a coil inside the contactor. That coil closes internal contacts and sends power to the motor in the selected direction. Because the contactor sits between your controls and the motor, a failure here can look like several other lift problems.

Start Boat Lift Contactor Testing With Safety

A boat lift control box contains live electrical power that can cause severe injury or death. Water, damp dock surfaces, corroded connections, and metal dock structures add another layer of risk. If you are not comfortable using a multimeter around energized circuits, stop at the visual inspection and contact a qualified marine electrician or lift technician.

Before opening the control box, turn off the dedicated breaker and verify power is off with a properly rated meter. Keep hands, tools, and test leads dry. Photograph the existing wire layout before removing anything, and never bypass safety devices, limit switches, or grounding connections to make a lift run.

For a useful diagnosis, have a digital multimeter, insulated screwdrivers, a flashlight, and the wiring diagram for your lift or control system. The diagram matters because contactor layouts vary. A direct-drive lift, a reversing motor setup, and a system with an auto-stop remote may use different terminals and control paths.

Know What the Contactor Is Telling You

The sound and behavior of the lift provide useful clues before you take a reading. A distinct click from the control box when you command the lift indicates that a coil may be energizing. No click can point to a weak or failed coil, a bad remote receiver, a faulty switch, an open limit circuit, a damaged control wire, or missing control voltage.

A click without motor movement is not automatic proof that the contactor is bad. The contacts may be burned or pitted, but the issue could also be a tripped breaker, loose line or load connection, failed motor capacitor, seized gearbox, or motor problem. Likewise, a lift that works going down but not up may have a directional contactor issue, yet it can also have a problem in the UP switch, remote channel, limit switch, or directional wiring.

Visible heat damage deserves attention. With power disconnected, inspect the contactor body, terminals, and attached wire insulation. Darkened plastic, a burnt odor, melted insulation, loose lugs, green corrosion, or wires that have pulled partly out of a terminal all call for correction. Tighten connections only to the equipment manufacturer’s specified torque. An overtightened terminal can damage the lug just as surely as a loose one can create resistance and heat.

Test the Coil With Power Off

After confirming the circuit is de-energized, identify the coil terminals using the contactor markings or wiring diagram. A coil is commonly labeled A1 and A2, although markings differ by manufacturer. Remove at least one coil lead when practical so other parts of the control circuit do not affect the reading.

Set the meter to resistance and measure across the coil terminals. An open-loop or OL reading typically means the coil winding has failed. A reading extremely close to zero can indicate a shorted coil. A measurable resistance does not guarantee the coil is healthy, but it does show the winding is not completely open.

Do not use a generic resistance number as the final verdict. Coil resistance depends on the contactor’s rated control voltage and design. Compare your reading with the manufacturer’s specifications when available, or compare it to the matching contactor in a directional pair if your system uses one. A 24-volt control coil and a 120-volt coil are not interchangeable, even when the contactor looks similar.

Also inspect the moving armature. With the power off, it should move freely when gently pressed and return cleanly. Dirt, rust, insect debris, or heat-distorted plastic can prevent full engagement. Do not sand, file, or lubricate contact surfaces unless the manufacturer specifically calls for it. Many modern sealed contactors are intended to be replaced rather than rebuilt.

Check Control Voltage Before Replacing the Contactor

If the coil looks intact, the next question is whether it receives the correct command voltage. This is a live test and should be performed only by someone qualified to work safely around energized equipment.

Restore power, keep clear of exposed terminals, and set the meter for AC or DC voltage as required by the control system. Measure across the coil terminals while an assistant commands UP, then DOWN if your lift uses separate directional contactors. The reading should match the coil’s rated voltage closely enough for reliable pull-in.

If the proper voltage reaches the coil but the contactor does not pull in, the contactor is a strong replacement candidate. If there is no command voltage, do not replace the contactor yet. Trace the control side first: receiver output, wired switch, fuse, transformer, auto-stop limit switch, control wiring, and terminal connections all deserve inspection.

This step is particularly valuable with wireless controls. A remote may light up and appear to transmit while the receiver has a failed output relay, a blown low-voltage fuse, or a programming issue. The contactor cannot close if it never receives the command.

Verify Line and Load Voltage

When a contactor audibly engages, test whether it is actually passing power to the motor. With the lift commanded to run and the appropriate safety precautions in place, measure voltage on the line side and then the load side of the active contactor poles. The load-side readings should correspond to the supply and wiring configuration specified for your motor.

Line voltage present but missing or substantially reduced voltage on the load side points toward failed contacts, a poor terminal connection, or an improperly closing contactor. Heat-damaged contacts can create voltage drop under load. That drop starves the motor, leading to humming, weak lifting performance, nuisance trips, and additional heat.

A contactor can pass a basic no-load voltage check and still fail under the load of lifting a boat. If voltage is normal at the contactor output but the motor will not perform, move downstream. Check motor leads, capacitor condition where applicable, brake release, gearbox operation, cable condition, and the boat’s actual lift load. A lift that is overloaded or mechanically binding can make a good electrical system look faulty.

Choose a Replacement That Matches the Lift

A replacement contactor must match more than its physical shape. Confirm the coil voltage, number of poles, contact arrangement, current rating, motor horsepower application, enclosure fit, and terminal style. For reversing systems, verify whether the component is part of an interlocked pair designed to prevent UP and DOWN circuits from energizing at the same time.

Using an undersized contactor may cause premature contact wear and overheating. Using the wrong coil voltage means the control circuit will not operate correctly. A contactor intended for a different motor or wiring arrangement can create a more serious failure than the original problem.

This is where model information earns its keep. Record the lift manufacturer, motor voltage, horsepower, control-box details, and clear photos of the existing contactor labels before ordering. Dock Solutions can help waterfront owners narrow down compatible lift-control components, but a model match is always safer than selecting by appearance alone.

When Testing Points Beyond the Contactor

A contactor is only one part of a coordinated lift system. If it tests correctly, look at the conditions that tell the system when and how to operate. A misadjusted auto-stop can interrupt travel in one direction. A worn pendant switch can fail only under load. Corrosion inside a junction box can raise resistance enough to cause intermittent operation, especially after rain or changing water levels.

Seasonal inspection helps catch these issues before launch day. Check control-box seals, wiring strain relief, grounding, mounting hardware, remote function, and limit operation before the busy boating season. Keep the box closed and protected from spray, but make sure moisture is not trapped inside.

A careful test gives you something better than a temporary fix: confidence that the lift will raise your boat when weather shifts, guests arrive, or the day on the water is ready to begin.
