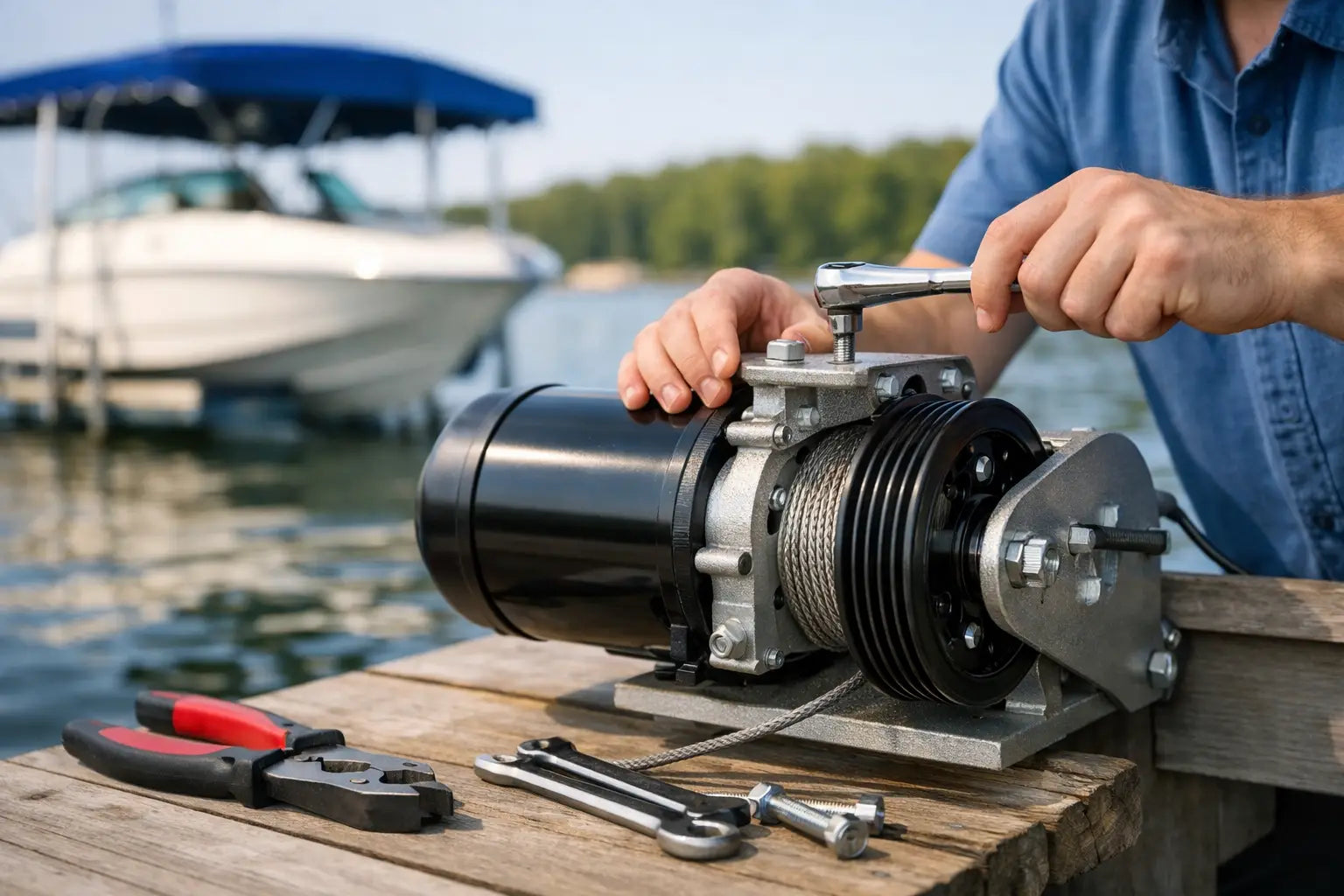

Boat Lift Motor Replacement Guide for Owners

A boat lift that will not raise at the end of a long dock day is more than an inconvenience. It can leave your boat exposed to wake, weather, and preventable hull damage. This boat lift motor replacement guide helps you identify the right replacement before you order, so you can restore dependable lifting power without creating a mounting, wiring, or capacity mismatch.

The motor is only one part of a lift system, but it must work correctly with the gear plate, drive arrangement, electrical supply, and lift capacity. A replacement that looks similar to the old unit is not necessarily compatible. Taking a few measurements and confirming your specifications first makes the job far more manageable.

Confirm That the Motor Is the Problem

A lift that hums, trips a breaker, runs slowly, or refuses to move can point to a failed motor, but those symptoms can also come from a weak capacitor, damaged switch, worn brake, corroded connection, or binding mechanical components. Start by checking the simple items with power disconnected: inspect the power cord, control switch, plug, terminal connections, and visible wiring for heat damage or corrosion.

If the motor only hums and the lift does not turn, a failed start capacitor or a seized gearbox may be the real issue. If the motor runs but the lift does not raise or lower, inspect the drive belt, chain, coupler, and gear plate. A slipping or damaged drive component can mimic a motor failure.

For electrical testing, use a qualified lift technician or electrician if you are not comfortable working around line voltage. Boat lifts operate close to water, and a correct repair starts with safe power isolation. Turn off and lock out the breaker before opening any electrical enclosure or touching motor wiring.

Match the Replacement Motor to Your Lift

The best motor replacement begins with the data plate on the existing motor. Photograph it before removing anything. That label often provides the voltage, horsepower, amperage, RPM, duty rating, frame or mounting details, and wiring diagram needed to identify a suitable match.

Voltage and electrical supply

Most residential boat lifts use either 120-volt or 240-volt power. The replacement motor must match the voltage available at your lift, unless the entire electrical setup is being redesigned by a qualified professional. Installing a 120-volt motor on a 240-volt circuit can destroy the motor. A 240-volt motor connected to a 120-volt supply may hum, fail to start, or deliver inadequate torque.

Do not rely on the plug shape alone. Confirm the incoming supply at the disconnect or control box and compare it with the motor data plate. If your lift uses a wireless control or auto-stop system, verify that the receiver, contactor, and switch arrangement are rated for the motor voltage and current as well.

Horsepower, torque, and lift capacity

Horsepower needs to suit the lift, not simply the boat. Lift capacity, cable routing, gearbox reduction, cradle design, and wind load all influence how much torque the system needs. A motor that is undersized may overheat, struggle under load, and shorten the life of the switch and capacitor. An oversized motor can place unnecessary stress on the gearbox, belts, chains, and structure.

Use the original horsepower as your starting point. If the existing lift routinely strains, stalls, or takes an unusually long time to raise the boat, investigate the whole system before moving to a larger motor. Sticking sheaves, worn cables, low voltage, or a damaged gear plate can be the actual cause. Increasing horsepower without addressing those issues may only move the failure somewhere else.

RPM and drive configuration

Motor speed matters because it affects the input speed to the gear plate or gearbox. Many lift motors are designed around a specific RPM range, commonly 1,725 RPM or 3,450 RPM. The wrong speed can change lifting performance and overload the mechanical drive.

Also identify whether your lift uses a direct-drive motor, a belt drive, a chain drive, or a gear plate connection. Compare shaft diameter, shaft length, keyway, pulley size, mounting orientation, and bolt pattern. A motor can have the right voltage and horsepower yet still be unusable if its shaft or mounting footprint does not match the lift.

Outdoor motor construction

A boat lift motor works in a demanding environment of moisture, temperature swings, pollen, salt air in coastal locations, and frequent seasonal use. Look for a motor built for outdoor duty, including a TENV, or totally enclosed non-ventilated, design when specified for your application. This construction helps keep moisture and debris out of the motor compared with an open-frame alternative.

Material quality matters around the water too. Corrosion-resistant hardware, properly sealed electrical connections, and a protected control enclosure all contribute to longer service life. The replacement motor is a good opportunity to replace brittle wire connectors, cracked strain reliefs, or corroded mounting hardware.

Measure Before You Remove the Old Motor

Before loosening mounting bolts, document the installation from every useful angle. Take photos of the wiring terminals, capacitor location, switch connections, ground wire, shaft connection, and motor orientation. Label each wire with durable tape rather than trusting memory after the old motor is off the lift.

Record the following details in one place:

• Motor manufacturer and complete model number
• Voltage, horsepower, RPM, and amp rating
• Mounting bolt spacing and base or face-mount style
• Shaft diameter, usable shaft length, and keyway dimensions
• Drive type, pulley or sprocket specifications, and rotation direction
• Lift make, model, capacity, and gear plate information

Rotation direction deserves special attention. Some reversible motors can be wired for clockwise or counterclockwise rotation, while others are designed for one direction. Confirm rotation while viewing the motor shaft from the correct end, and follow the manufacturer wiring diagram exactly. Never guess based on how the lift appears to move from the dock.

Plan a Safe Motor Replacement

A motor can be heavy, awkward, and mounted above water or over uneven dock surfaces. Use stable footing, keep the boat lift unloaded, and have a second person available when handling the unit. If the motor is mounted over the water or access requires climbing, professional installation may be the safer and more cost-effective choice.

With power locked out, disconnect and label the wiring, then remove the belt, chain, or coupler according to the lift design. Support the motor before taking out the final mounting fastener. Avoid striking the shaft with a hammer. If a pulley or coupler is seized, use the appropriate puller and penetrating lubricant rather than risking shaft or gearbox damage.

Mount the new motor securely and align the pulley, sprocket, or coupling with the existing drive components. Misalignment can create noise, vibration, belt wear, and premature bearing failure. For belt-drive lifts, set tension to the equipment specification. A belt that is too tight loads the bearings; one that is too loose can slip when the boat is near full height.

Reconnect conductors using the motor's wiring diagram and approved electrical connectors. The equipment grounding conductor must be connected correctly. Keep all splices and terminals inside a suitable weather-protected enclosure, with wiring routed away from moving parts, sharp edges, and standing water.

Test Operation Before Returning the Boat

After installation, test the lift without the boat first. Stand clear of cables, pulleys, belts, and the gear plate. Run the lift briefly in both directions and listen for rubbing, vibration, clicking, or a strained motor sound. Confirm that the motor starts promptly and that the direction at the switch matches the lift movement.

Then raise and lower the boat slowly while watching cable spooling, cradle travel, drive alignment, and motor temperature. Stop immediately if the breaker trips, the motor hums, the lift binds, or the auto-stop does not stop at the intended travel limit. Wireless remotes and auto-stop systems add everyday convenience, but they must be tested after any motor or wiring work.

When a Direct Replacement Is Not the Best Choice

Sometimes a failed motor reveals that the lift is ready for a broader upgrade. If the gear plate is worn, the control switch is unreliable, or the lift still uses an exposed and aging manual setup, replacing only the motor may postpone another service call. A compatible wireless remote or auto-stop system can make launching and securing your boat easier while helping prevent overtravel.

That said, a full upgrade is not always necessary. A well-maintained lift with a sound gearbox, correct wiring, and good cables may only need a properly matched motor. The right choice depends on the condition of the complete system, how often you use the lift, and whether convenience features would genuinely improve your waterfront routine.

Dock Solutions can help owners and service professionals match replacement motor specifications to the lift in front of them. Bring clear motor-label photos and lift details to the selection process. A few minutes spent verifying compatibility now can protect your boat, your lift, and the time you planned to spend enjoying the water.
