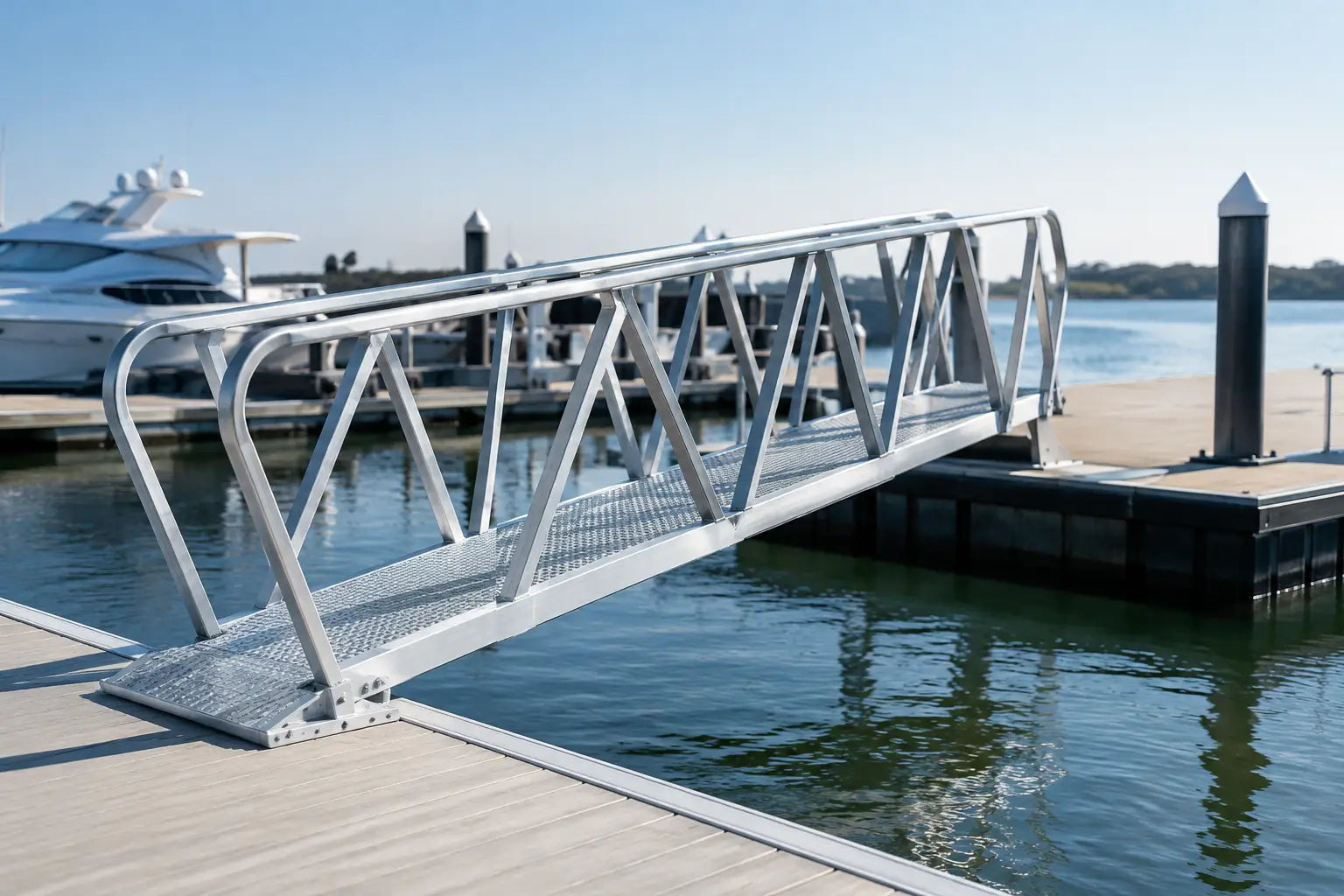

Dock Gangway Sizing: Get Length and Width Right
A gangway that looks right at normal water level can become too steep to use after a storm, seasonal drawdown, or tide change. That is why dock gangway sizing starts with the full range of water movement, not just the distance between shore and dock on installation day. The right gangway provides steady footing, adequate clearance, and dependable access when it is time to carry coolers, supplies, or boat-lift equipment to the dock.
Start Dock Gangway Sizing With Water-Level Change
The most important measurement is vertical travel: the difference between the highest and lowest water levels your gangway will need to accommodate. For a floating dock, this is usually the water-level range between the shore-side landing and the dock deck. For a fixed dock connection, account for the elevation difference between both surfaces and any movement in the floating section.
Use local history, not a single observation. Lake levels can change with seasonal management, rainfall, and drought. River properties may see faster swings, while coastal locations must account for normal tides, wind-driven water, and storm conditions. Ask how the dock has performed at its highest and lowest known water levels, and include a reasonable margin if the property has limited records.
A gangway gets steeper as water drops or rises. The same 20-foot gangway that feels comfortable with a 2-foot elevation difference may become difficult when the vertical change reaches 5 or 6 feet. Long gangways cost more and require more room, but they reduce the angle that makes walking, rolling a dock cart, and carrying gear less secure.
Use Slope Before You Choose Length
Slope is the relationship between rise and run. A 1:12 slope means 1 inch of vertical rise for every 12 inches of horizontal run. It is a useful reference point for accessible routes, although a private residential gangway is not automatically required to meet public-access standards. Local building rules, community requirements, and intended users still matter.
For properties where guests, children, older family members, wheeled carts, or mobility devices will regularly use the gangway, a gentler slope deserves priority. At a 4-foot vertical change, a 1:12 slope requires roughly 48 feet of horizontal run. That can be impractical on a compact shoreline, so the project may require a switchback landing, a different shore approach, or a dock layout change rather than simply accepting an excessively steep gangway.
Many recreational installations use a steeper grade when space is limited. That can work for able-bodied users in predictable conditions, but it comes with trade-offs. Wet decking, muddy footwear, coolers, and a rolling shoreline can turn a manageable incline into a difficult transition. If a steeper gangway is necessary, choose a slip-resistant walking surface, handrails where appropriate, and a width that gives users room to steady themselves.
Choose Gangway Width for How the Dock Is Used
Width should be based on real traffic, not just the narrowest passage you can fit. Measure clear walking width between rails, curbs, or other obstructions. The overall outside width may be several inches larger once handrails and structural framing are included.
A narrow gangway may be sufficient for occasional foot traffic to a small fishing dock. A wider model makes more sense for a family waterfront where people carry tubes, tackle boxes, groceries, fuel containers, and boat-lift accessories. It also makes passing more comfortable and reduces the chance that a person steps too close to the edge while making room for someone else.
For frequent cart use, measure the cart at its widest point and leave clearance on both sides for hands and uneven movement. Do not size the gangway around a cooler or cart that barely fits. That choice often becomes frustrating once the deck is wet or the gangway changes angle. If wheelchair access is a project goal, confirm the required clear width, slope, landings, edge protection, and handrail details with the authority that governs the property.
Confirm Capacity and Structure, Not Just Dimensions
A longer or wider gangway is not automatically the safer one. Its frame, truss design, deck material, connections, and float or dock attachment must be rated for the expected use. The manufacturer capacity should cover more than one person walking across an empty gangway. Consider the heaviest realistic combination of people, loaded carts, maintenance tools, and dock equipment.
Pay close attention to concentrated loads. A hand truck with a motor, battery, or gear plate components places weight in a smaller area than several people standing apart. Similarly, a gangway used by service technicians may need a higher working capacity than one used only for light recreational access.
Aluminum is a common choice because it is corrosion-resistant and manageable to handle, but construction details still vary. Look at cross members, tread design, welded or bolted joints, and the way the gangway resists side-to-side movement. Coastal and brackish-water properties should be especially careful about material compatibility and fasteners. Stainless steel hardware is often a smart choice, but the full assembly must be suited to the environment.
Plan Both End Connections
A gangway needs to pivot as the dock moves. The shore end commonly uses a hinge or roller arrangement, while the dock end needs a connection that allows vertical movement without binding. A fixed connection at both ends can transfer stress into the dock frame, loosen hardware, or cause the gangway to lift out of position as water changes.
The landing areas matter just as much as the span. At the shore end, provide a level, stable surface that will not erode or shift under repeated use. At the dock end, make sure the gangway does not block a gate, interfere with boat-lift access, or create a pinch point near cleats, electrical pedestals, or lift controls.
Check the gangway at its highest and lowest operating angles before finalizing attachment points. It should remain supported, keep its connection hardware engaged, and avoid striking the dock, seawall, or shoreline. Allow room for railings and for the gangway to move laterally in wind and boat wake. A connection that works on calm water can become noisy and damaging if it has no tolerance for normal movement.
Do Not Forget Freeboard and Dock Height
Freeboard is the distance from the waterline to the top of the dock deck. A high-freeboard dock may be useful for certain boat-lift layouts or rough-water conditions, but it adds vertical rise to the gangway calculation. A low-profile floating dock can improve the transition angle, yet it may have different wave performance and boarding considerations.
Think through the entire route from parking area to boat. If the dock deck, gangway, and shore landing all sit at different heights, the final step at each transition may be more troublesome than the middle of the gangway. Small changes in elevation can be addressed with a properly designed landing or transition plate instead of leaving a trip hazard in a high-traffic area.
A Practical Measurement Checklist
Before ordering, document the water range, the elevation of the shore landing, the dock freeboard, and the horizontal distance available. Measure the clear path for the gangway and note trees, retaining walls, utility lines, gates, and boat-lift equipment. Then define who will use it and what they will carry.
It also helps to record these four details for the supplier or installer:
- The highest and lowest expected water levels
- The desired clear walking width and railing needs
- The expected people, cart, and equipment loads
- The shore and dock connection types already in place
A well-sized gangway is not simply a bridge to the dock. It is the part of the waterfront that gets used every time someone heads out for an early ride, returns with a tired crew, or handles a quick lift adjustment before weather rolls in. Dock Solutions can help make the equipment side of that plan clearer, but the best starting point is still an honest look at your water levels, space, and day-to-day use.
