Floating Dock Connector Guide for Better Fit

A floating dock can have quality frames, good flotation, and a level walking surface, yet still feel loose or uneven if its connectors are wrong for the layout. This floating dock connector guide explains how to match connection hardware to the movement, loads, and water conditions your dock sees all season.

Connectors do more than hold dock sections together. They control how sections articulate as water rises, falls, and moves under the dock. They also transfer the force of foot traffic, carts, changing boat wakes, and tied-up watercraft from one dock section to the next. Choosing the right connector is the difference between a dock that moves as designed and one that bangs, twists, or develops worn connection points.

Start With How Your Dock Needs to Move

Every floating dock moves. The real question is how much movement each connection should allow. A long straight run in protected water usually needs a different connection than an L-shaped layout exposed to regular boat traffic or a shoreline transition with significant seasonal water changes.

A connector must permit the normal vertical motion of floating sections without allowing excessive side-to-side play. If the connection is too rigid, changing water levels and uneven loading can put stress into the frames, deck boards, and flotation. If it is too loose, sections can separate slightly under load, creating an uncomfortable walking surface and accelerated wear at the hardware.

Think about the dock as a connected system, not a group of individual platforms. The main dock, finger sections, swim platform, and gangway all move differently. The connector at each point should support that specific job.

Straight-Line Connections

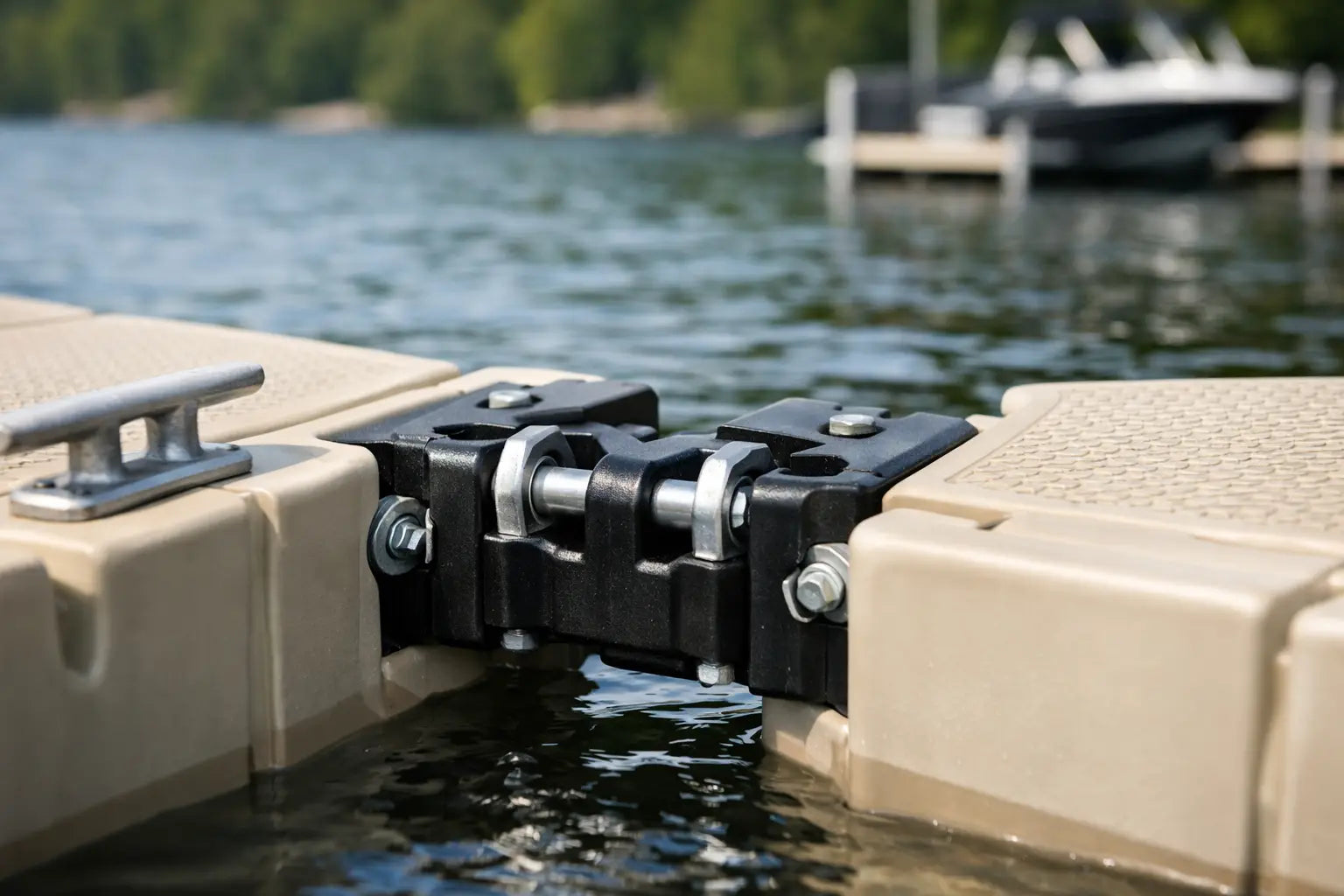

Inline connectors join two sections end to end. Their primary task is keeping the walking surface aligned while allowing the natural up-and-down motion of each floating section. Heavy-duty hinge-style hardware is a common choice because it creates a controlled pivot point rather than trying to make adjoining sections act as one rigid frame.

For a straight run, inspect the frame height, connection-tab placement, and the manufacturer’s hole spacing before ordering. A connector can be made from premium materials and still be a poor fit if its pin diameter or mounting geometry does not match your dock frame.

Corner and T-Style Connections

Corners and T intersections carry more complicated loads. The main dock may move lengthwise with wind and wake while the attached finger dock moves on a different plane. Hardware at these locations needs enough articulation to reduce binding, while keeping the layout square and stable for regular use.

A common mistake is using the same light-duty connector throughout the entire dock. Corner connections often deserve stronger hardware because they receive pull from more than one direction. If a boat is tied along the finger dock, the corner connection may also see repeated shock loads from line tension and wake action.

Shore Connections and Gangways

A floating dock-to-shore connection needs room for elevation changes. A gangway is usually the better approach when water levels fluctuate, because it provides a stable transition while allowing the dock to rise and fall. The hardware at both ends must be selected for the gangway’s width, frame style, and expected travel.

Do not use a standard dock-section hinge as a substitute for a properly designed shore transition. The connection may look workable at one water level but bind, lift, or create a steep walking angle when conditions change.

Types of Floating Dock Connectors

The names vary by dock manufacturer, but most connector systems fall into a few practical categories. The right option depends on the dock frame, anticipated load, and desired amount of articulation.

Hinge connectors use a pin through aligned brackets or eyes. They are commonly used between floating dock sections because the pin allows controlled vertical movement. In a heavy-duty setup, the connector plates and pins should be sized for the frame and the loads the dock will carry.

Male-and-female connectors use interlocking hardware that joins two compatible dock sections. They can make seasonal installation faster, especially with modular systems, but they are not universal. Verify that both components are from the same connection family and that the locking pins, bolts, or retention clips are included.

Pipe-bracket connections are often used where a dock section must move vertically along a guide pipe. They are especially useful near shore or in locations with water-level variation. The bracket and pipe diameter must match, and the pipe needs sufficient embedment and support for the bottom conditions.

Flexible couplers use reinforced rubber or similar resilient materials with bolted plates. They can absorb movement and reduce hard contact between sections, which is useful in some floating systems. They are not automatically the best choice for every connection, however. Flexible material can wear faster in high-load locations, and bolt tension should be checked as part of seasonal dock maintenance.

Choose Materials for the Water You Have

Connector material matters because dock hardware lives in a wet, abrasive environment. Freshwater, brackish water, saltwater, ice, and humidity all affect hardware differently.

Hot-dip galvanized steel is a practical choice for many freshwater dock applications. Its coating provides good corrosion resistance, and heavy galvanized components are widely used for structural dock hardware. Over time, inspect galvanized pieces for coating loss, especially around bolt holes, welds, and areas where metal rubs against metal.

Stainless steel offers excellent corrosion resistance and a clean appearance, particularly where hardware is frequently exposed to spray. In coastal or brackish environments, marine-grade stainless steel is often worth the investment. But stainless is not a single category. Grade, fastener quality, and contact with dissimilar metals all matter.

Avoid mixing metals without considering galvanic corrosion. For example, stainless hardware against aluminum frames can require isolation washers or other protective measures, depending on the dock design and environment. The goal is to prevent one component from becoming the sacrificial part of the connection.

Size the Connector for Real Loads, Not Just Foot Traffic

A connector that handles people walking across the dock may not handle the forces created by a pontoon boat, personal watercraft, or strong afternoon wake. Consider the full use of the dock, including gear carts, coolers, dock boxes, launch activity, and the pull created when boats are secured alongside it.

Pay close attention to these four factors when selecting hardware:

• Frame dimensions and wall thickness at the connection point
• Pin, bolt, and bracket diameter specified for the connector system
• Water movement from wind, currents, passing boats, and seasonal storms
• The heaviest expected loading from people, equipment, and moored watercraft

Load ratings should be viewed alongside the entire dock structure. A heavy connector cannot compensate for undersized frame tabs, deteriorated wood, loose flotation, or an inadequate anchoring system. Likewise, a well-built floating dock can still perform poorly when its connection hardware has excessive wear or missing retention hardware.

Installation Details That Prevent Premature Wear

Before installation, place the dock sections in their intended position and confirm the deck heights are compatible. Slight differences can be manageable where the connector allows movement, but a major mismatch can create a trip point and put uneven stress on the hardware.

Use the correct bolts, washers, pins, and locking devices for the connector. Do not replace a specified pin with a smaller bolt simply because it fits through the hole. Pins are designed to carry shear loads and allow movement in a way that ordinary threaded fasteners may not. If a connector uses a retaining clip or cotter pin, install it every time. A connection can work loose surprisingly quickly under repeated wake action.

Tighten bolted connectors to the manufacturer’s recommendation. Over-tightening can crush wood blocking, deform aluminum, or prevent a flexible coupler from moving as intended. Under-tightening allows hardware to work against the frame, enlarging holes and creating a repair that is more involved than a seasonal hardware check.

After the dock is in the water, walk the connections and watch them under normal movement. Look for frame contact, pin binding, abrupt deck-height changes, and hardware that shifts when weight moves across the joint. Correcting an alignment issue early protects the dock structure and makes the finished layout more comfortable to use.

Inspect Connectors as Part of Seasonal Dock Care

Connector hardware deserves attention at launch, midseason, and pull-out. Check for rust, pitting, cracked welds, bent pins, elongated holes, missing clips, loose bolts, and worn bushings or rubber components. Movement is normal. Visible metal loss, grinding contact, or increasing looseness is not.

In freeze-prone regions, follow the dock manufacturer’s recommendations for winter removal or protection. Ice can apply forces far beyond normal boating conditions, and no connector should be expected to protect a dock that is improperly left in an exposed location. In areas where the dock remains in year-round, more frequent inspection is a smart trade-off for uninterrupted waterfront access.

When replacing one connector, compare both sides of the joint. A new pin installed into a worn bracket may only mask the real issue. Replace damaged mating hardware together when needed, and confirm that the repaired connection remains compatible with the rest of the dock system.

Dock Solutions helps waterfront owners narrow down dock hardware by frame style, connection type, and operating conditions, so a replacement part supports the dock you have instead of creating a mismatch at the shoreline.

The best connector is rarely the most universal-looking piece of hardware. It is the one that fits your dock frame, accommodates your water movement, and gives every section a controlled place to move. Get that connection right before launch, and your dock will feel more secure every time the family heads down to the water.
