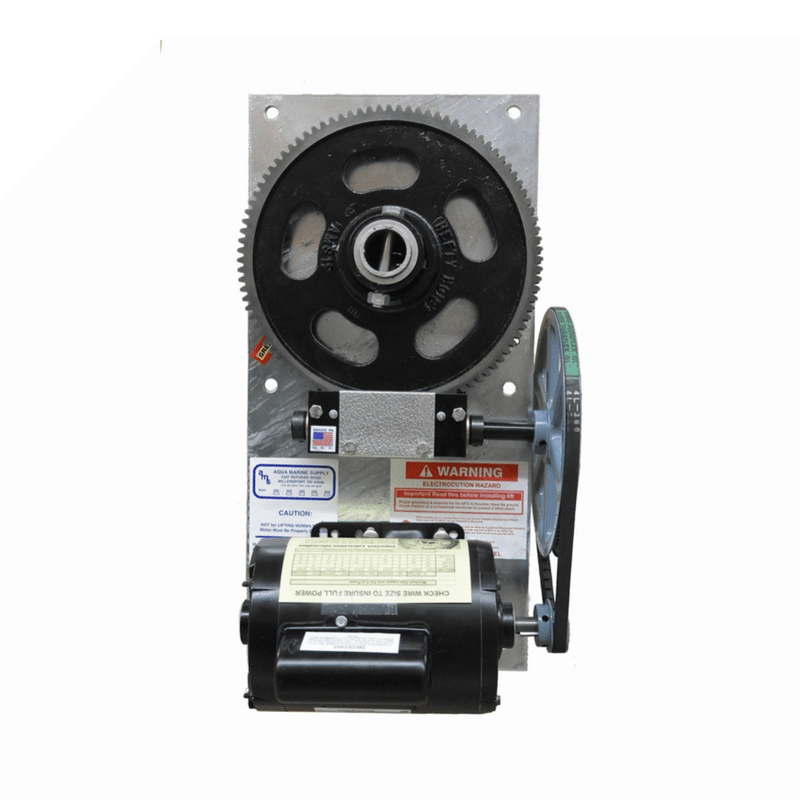

6500 Hefty Hoist Motor/Gear Plate
SKU DS374
Original price
$1,200.00
-
Original price
$1,200.00
Original price
$1,200.00
$1,200.00
-
$1,200.00
Current price
$1,200.00
Availability:
in stock, ready to be shipped
Output Torque: 6,500 lb
Motor: 1 HP RD
Hoist Plate: Heavy duty galvanized steel
Hoist Plate: Heavy duty galvanized steel
Drive Pulley: 10" Steel
Belt Size: 4L360
Hoist Ratio: 480:1
Output RPM: 3.59
Grease Type: Hi-temp Moly
Grease Type: Hi-temp Moly
-Through-shaft style output allows for mid or end of pipe installation
- All models use 115/230V 56 frame 1725 RPM motor
- Adapts to 2" pipe (2.375" OD)
The Original
AMS Flat Plate drives have been around for decades and continue to be a top selling line. When properly installed and regularly maintained, these drives can last decades in even harsh marine environments. The hoist is sold with 1/4" galvanized steel backing plate. The 6500 and 8500 models feature a ductile iron bull gear for extreme tensile strength and a HD bronze worm gear.
