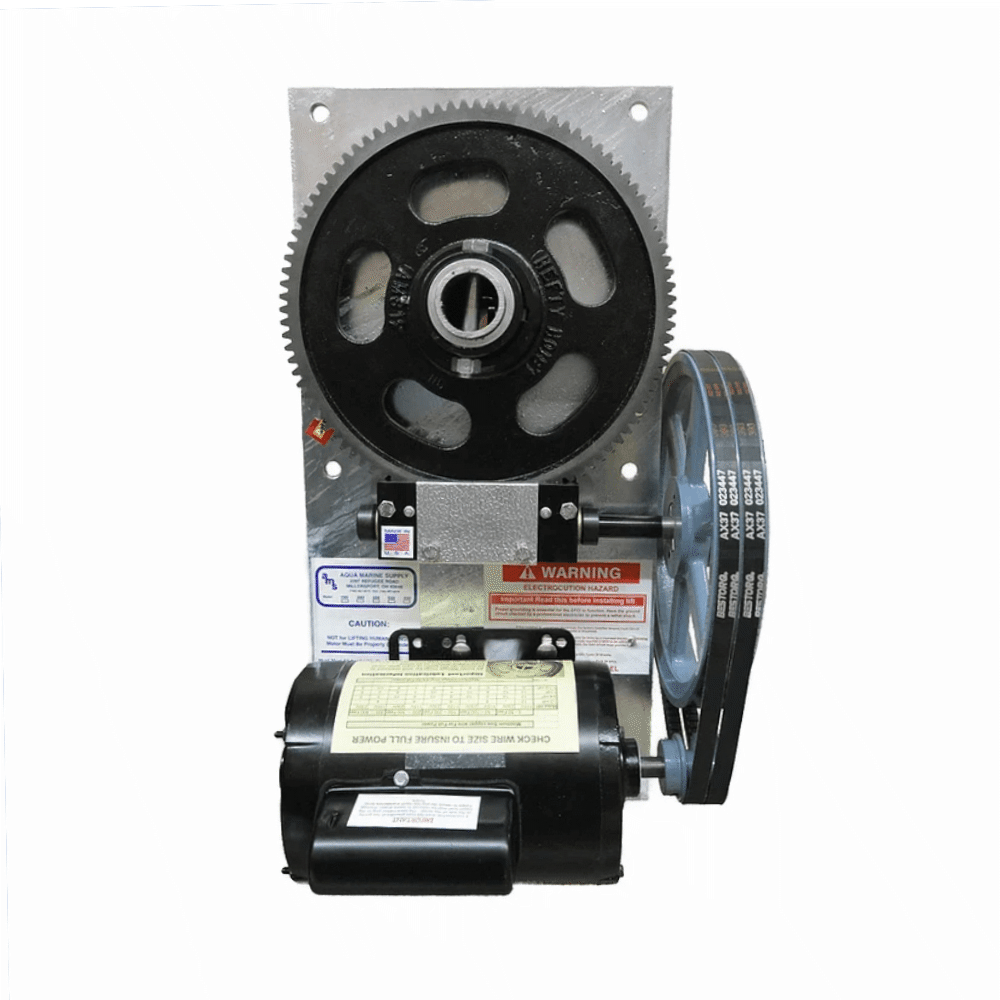

![8500 Hefty Hoist Motor/Gear Plate](http://shopdocksolutions.com/cdn/shop/products/8500Motor_GearPlate-HeftyHoist_{width}x.jpg?v=1643992432)
Output Torque: 8,500 lb
Motor: 1 1/2 HP RD
Hoist Plate: Heavy duty galvanized steel
Hoist Plate: Heavy duty galvanized steel
Drive Pulley: 11.2" Steel, Double
Belt Size: AX37 (2)
Hoist Ratio: 537.5:1
Output RPM: 3.20
Grease Type: Hi-temp Moly
Grease Type: Hi-temp Moly
-Through-shaft style output allows for mid or end of pipe installation
- All models use 115/230V 56 frame 1725 RPM motor
- Adapts to 2" pipe (2.375" OD)
The Original
AMS Flat Plate drives have been around for decades and continue to be a top selling line. When properly installed and regularly maintained, these drives can last decades in even harsh marine environments. The hoist is sold with 1/4" galvanized steel backing plate. The 6500 and 8500 models feature a ductile iron bull gear for extreme tensile strength and a HD bronze worm gear.
