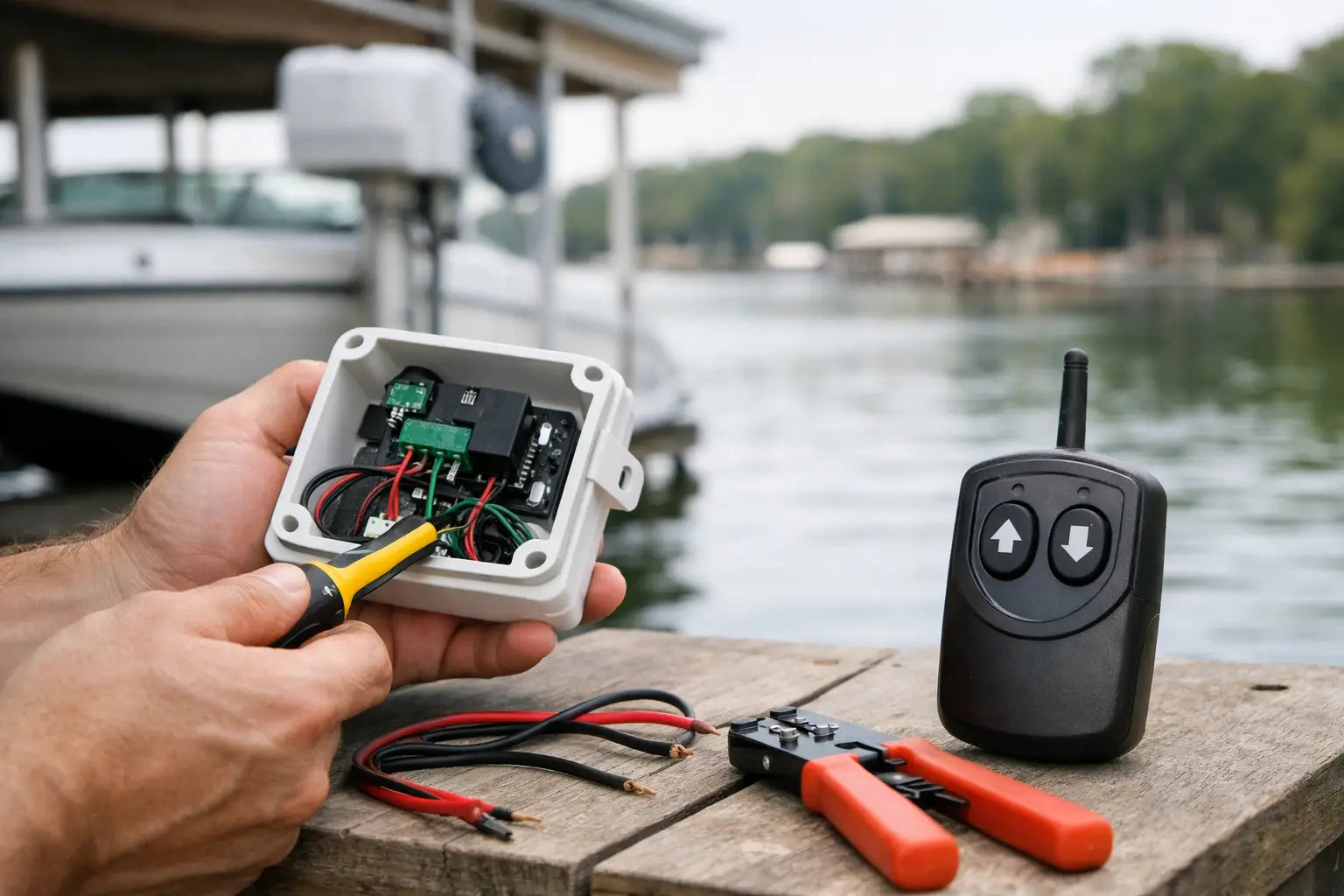

How to Wire Boat Lift Remote Controls Safely

A boat lift that only works from a hardwired switch can turn a simple launch into a back-and-forth walk along the dock. Learning how to wire boat lift remote controls correctly gives you dependable up-and-down operation from the boat, dock, or shoreline - but only when the remote receiver, motor, voltage, and limit system are matched properly.

This is not a place to guess at wire colors or copy another lift’s terminal layout. Boat lift motors and remote systems vary by manufacturer, voltage, horsepower, drive style, and whether the lift uses manual or auto-stop operation. Start with the wiring diagram supplied with your specific remote and motor, then use the process below to verify every connection before power is restored.

Start With the Lift, Motor, and Remote Specifications

Before opening the motor cover or receiver enclosure, identify what you are wiring. The remote kit must be rated for the motor’s voltage and load. A remote designed for a 120-volt lift motor is not interchangeable with a 240-volt system, and a receiver must be sized for the motor’s horsepower and starting amperage.

Check the motor nameplate for voltage, horsepower, amp rating, phase, and wiring configuration. Most residential boat lifts use single-phase reversible motors, commonly 120 or 240 volts. Direct-drive and gear-plate lifts can use different motor and switch arrangements even when their basic voltage appears the same.

Also confirm whether you have a standard wireless remote system or an auto-stop remote system. A standard remote controls lift direction while you hold the button. An auto-stop system works with properly installed upper and lower limit switches so the lift stops at preset travel points. The added convenience is valuable, but the limit switches must be installed and tested with the same care as the receiver wiring.

If the remote system, motor voltage, or lift application is uncertain, pause before installation. Matching the right equipment first is faster and far safer than troubleshooting a damaged receiver, motor, or control board later.

Turn Off Power and Inspect the Existing Installation

Disconnect power at the breaker before touching any wiring. Lock the breaker if possible, label it so no one restores power, and verify that the circuit is de-energized with an appropriately rated meter. Do not rely on the lift switch being in the off position.

Open the existing switch or motor control enclosure and inspect the wiring condition. Look for cracked insulation, corroded terminals, loose wire nuts, water intrusion, undersized wire, and ungrounded metal components. A wireless remote is an upgrade to the control system, not a cure for an aging or unsafe electrical installation.

Outdoor waterfront wiring needs weather-resistant enclosures, proper strain relief, and conductors rated for the environment. The receiver should be mounted where it remains protected from direct spray, standing water, physical impact, and excessive heat. Keep it accessible enough for future programming, inspection, and service.

A GFCI-protected circuit is typically part of a safe dockside electrical setup, but local electrical codes and dock requirements can vary. If the lift circuit lacks proper protection, has repeated nuisance trips, or shows signs of corrosion, have a qualified marine or electrical professional evaluate it before adding remote controls.

How to Wire Boat Lift Remote Receivers

Most wireless boat lift remote installations place a receiver between the incoming power source and the lift motor control connections. In practical terms, the receiver receives power from the supply circuit and sends the correct switched output to operate the motor in the up or down direction.

The exact terminal names vary. Your receiver may label connections as line, load, common, up, down, neutral, ground, motor, or similar terms. Follow the manufacturer’s diagram rather than assuming a terminal serves the same purpose as one on another brand or model.

In a typical installation, the incoming supply conductors connect to the receiver’s line-side terminals. The motor conductors connect to the corresponding output terminals. The equipment grounding conductor remains continuous through the system and bonds to the receiver enclosure when the instructions call for it. On 120-volt systems, the neutral must land exactly where the diagram specifies. On 240-volt systems, two hot legs may be used instead of a neutral.

Reversible boat lift motors require separate direction-control connections. Those connections determine whether the lift travels up or down when a command is sent. Swapping or misplacing them can reverse button operation, prevent the motor from starting, or create an unsafe wiring condition. Never test direction by holding exposed conductors together or bypassing the receiver.

Keep all splices inside listed enclosures, tighten terminals to the manufacturer’s specified torque where provided, and use the correct wire gauge for the circuit and motor load. Do not force multiple conductors under a terminal that is only listed for one. If the kit includes a wiring harness, use it as intended instead of cutting and improvising extensions.

Protect the Receiver and Antenna

Wireless performance depends on receiver placement as well as wiring. Mount the receiver antenna according to its instructions, keeping it away from large metal surfaces, motor housings, and tightly coiled power conductors when possible. Metal lift components can reduce radio range, especially if the receiver is enclosed in a metal box without an approved external antenna arrangement.

Route low-voltage antenna or control wiring separately from power conductors when the manufacturer directs it. This reduces interference and makes future service easier. Do not drill unsealed holes into an enclosure where rain, humidity, or insects can enter.

Add Auto-Stop Limits Carefully

Auto-stop remotes can make lift operation far more convenient, particularly when loading a boat alone or approaching the dock in changing weather. They also depend on accurate limit-switch adjustment. The receiver must know when to interrupt upward or downward travel before the lift reaches a damaging point.

Install upper and lower limit switches using the remote system’s specified brackets, cams, and actuator hardware. The upper limit should stop the lift before the boat or cradle contacts the canopy, dock framing, or other overhead obstruction. The lower limit should stop travel before cables go slack, the cradle contacts an obstruction, or the boat sits too low for safe launching.

Limit-switch wiring is often low-voltage or control-circuit wiring, but that does not make it interchangeable between systems. Connect each lead to the receiver terminals shown in the diagram and keep the cable protected from moving pulleys, cable wraps, and sharp edges. Leave enough service loop for movement without leaving loose wire where it can snag.

After installation, test the limits with the lift unloaded first when practical. Use short button presses and stay at the control point. Confirm that the up command stops at the upper set point and the down command stops at the lower set point. If either direction continues past its intended stop, shut off power and correct the limit setup before operating the lift with the boat aboard.

Program the Remote and Test Every Function

Once all wiring is complete, reinstall enclosure covers and restore power at the breaker. Program each handheld transmitter according to the receiver instructions. Many systems use a learn button on the receiver, followed by an up or down button press on the remote. Program only the transmitters you intend to use, especially at shared docks or marinas where nearby remote systems may be present.

Test operation from close range first. Verify that the UP button raises the lift and the DOWN button lowers it. If direction is reversed, turn power off before changing any wiring. Then test the remote from the locations where you expect to use it: on the dock, inside the boat, near the shore connection, and at a reasonable distance away.

Watch the lift through a complete operating cycle. Listen for hesitation, chatter, or a motor that hums without moving. Check that cables wind evenly, the cradle stays level, and the auto-stop limits stop exactly where intended. A remote control cannot compensate for worn pulleys, damaged cables, failing capacitors, or a motor that is undersized for the lift.

When to Bring in a Professional

A hands-on waterfront owner can often install a compatible remote kit when the existing lift wiring is sound and the manufacturer provides a clear diagram. It makes sense to call a qualified technician or electrician when the lift has 240-volt power, unclear motor leads, corrosion inside the control box, a nonstandard contactor setup, damaged dock wiring, or recurring breaker trips.

Professional help is also worthwhile for multi-lift docks, commercial applications, or upgrades that combine a new motor, wireless control, and auto-stop system. The cost of getting the installation right is small compared with a damaged boat, burned motor, or lift that fails on the first clear weekend of the season.

Dock Solutions can help narrow down remote compatibility by motor voltage, horsepower, and the control features your lift needs. With the receiver wired, limits verified, and remotes programmed, your launch routine becomes what it should be: a quick check of the boat, a press of a button, and more time enjoying the water.
