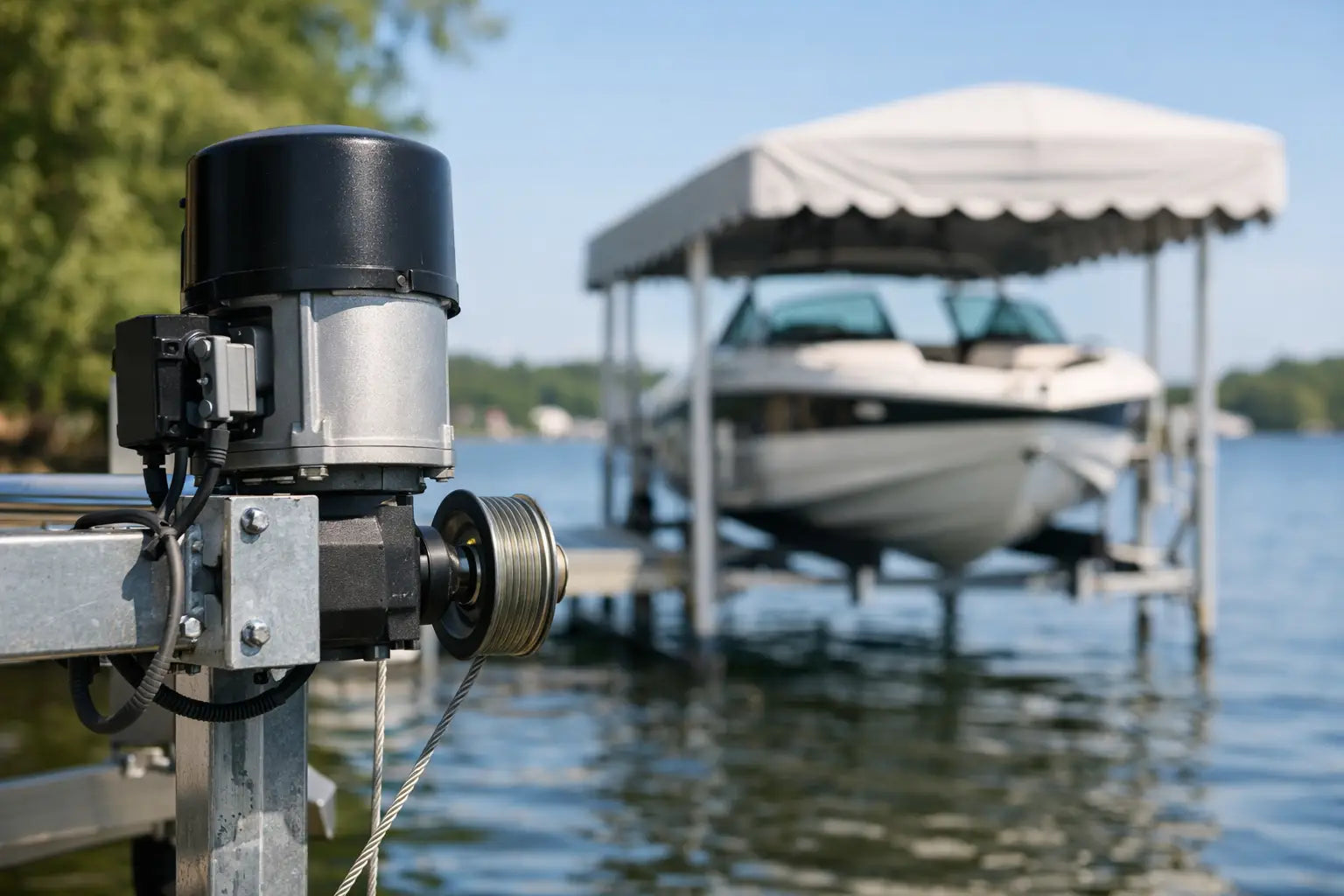

Boat Lift Motor Horsepower Chart and Sizing

A boat lift that strains, stalls, or trips its breaker can turn a perfect boating afternoon into a dockside repair project. This boat lift motor horsepower chart is designed to help you narrow the field, but horsepower is only one part of a proper match. Your lift’s rated capacity, gearbox and gear plate arrangement, power supply, cable condition, and lifting speed all matter before you order a replacement.

The right motor should raise and lower your boat with steady, controlled operation. It should not run excessively hot, struggle at the start of travel, or require you to guess whether a motor is compatible with your existing lift system.

Boat Lift Motor Horsepower Chart

Use this chart as a practical starting point for common vertical boat lift applications. These ranges are general guidelines, not a substitute for the lift manufacturer’s motor recommendation. A heavily equipped boat, a long lifting travel, aging cables, or a high-friction drive system can change what the lift requires.

| Typical lift capacity | Common motor horsepower range | Usual application considerations |
|---|---:|---|
| Up to 1,600 lb | 1/3 HP to 1/2 HP | Personal watercraft and small aluminum boats; confirm voltage and mounting pattern. |
| 1,600 to 3,000 lb | 1/2 HP to 3/4 HP | Small runabouts, fishing boats, and many pontoon lift setups. |
| 3,000 to 4,500 lb | 3/4 HP to 1 HP | Larger pontoons, deck boats, and fiberglass boats with typical equipment loads. |
| 4,500 to 6,000 lb | 1 HP to 1-1/2 HP | Larger boats or lifts with more demanding travel and drive requirements. |
| 6,000 to 9,000 lb | 1-1/2 HP to 2 HP | Heavy recreational boats and higher-capacity vertical lift systems. |
| Above 9,000 lb | 2 HP or manufacturer specified | Large vessel lifts may require specialized motors, gearing, and electrical planning. |

These horsepower ranges assume the lift itself is properly configured and maintained. They do not mean a larger motor is automatically the safer choice. Installing more horsepower than the gear train, cable system, or lift design is intended to handle can create its own problems, including accelerated wear and harder-to-control operation.

Start With the Actual Lift Load

The capacity decal on the lift is the first number to find. It tells you what the structure was designed to raise, but it is not the same as your boat’s advertised dry weight. Add the engine or engines, fuel, batteries, water, wakeboard towers, hardtops, electronics, fishing gear, and anything else that stays onboard when the lift runs.

For example, a pontoon listed at 2,500 pounds dry can be well beyond that number once it is fueled and equipped. If the boat is close to the lift’s maximum rating, do not try to solve the issue by simply moving up one horsepower size. Confirm that the lift capacity itself is appropriate first.

A motor has to overcome more than the boat’s weight. It also works against friction in the gear plate, sheaves, pulleys, cables, and bearings. A lift that previously worked well but now labors under the same boat may need maintenance rather than a more powerful motor.

Do Not Size by Boat Weight Alone

Two lifts carrying the same boat can require different motors. One may use a direct-drive arrangement and another may use a gear plate with a different reduction ratio. One may have short travel in protected water, while another lifts farther above fluctuating lake levels. The motor must match the mechanical system it is turning.

That is why the most reliable replacement-motor order starts with the old motor’s data plate and the lift’s make, capacity, drive style, and electrical setup. Photos of the mounting, shaft, switch, and wiring can also prevent a costly mismatch.

Match Voltage Before Horsepower

Most residential boat lifts use either 120-volt or 240-volt power, while some systems use 12-volt or 24-volt DC motors for specific applications. Voltage is not an optional detail. A 240-volt motor connected to a 120-volt circuit will not perform as intended, and an incorrect wiring approach can damage equipment or create a safety hazard.

A 240-volt motor is often a sensible choice for larger lifts because it generally draws fewer amps than a comparable 120-volt motor. That can be helpful where wire runs are long or where the lift has a higher horsepower requirement. Still, the existing shore-side circuit, disconnect, breaker size, wire gauge, and motor specifications must work together.

If your old motor tag identifies voltage, horsepower, amps, RPM, and rotation, use all of those details. If the tag is missing or unreadable, do not rely on the color of the wiring or a previous owner’s description. Have the electrical supply identified before selecting the replacement.

Direct Drive, Gear Plate, and Shaft Fit Matter

Horsepower tells you how much output a motor can provide. It does not tell you whether the motor will physically fit your lift. Boat lift motors are selected around real compatibility points: frame size, mounting bolt pattern, shaft diameter and length, keyed or threaded shaft style, rotation, and the way the motor connects to the gearbox or gear plate.

A direct-drive motor may look similar to a gear plate motor at a glance, yet use a completely different mounting and output arrangement. The same is true of open-drip-proof and TENV motor designs. For waterfront use, a TENV motor is often preferred because its totally enclosed, non-ventilated construction helps protect internal components from moisture, dust, and outdoor dock conditions.

Motor rotation deserves special attention. Rotation is commonly specified from the shaft end, and an incorrect rotation direction can make the lift travel the wrong way. If you are replacing an existing motor, confirm the marking on the motor itself and compare it with the lift’s current operating direction before disconnecting wiring.

When a Higher-Horsepower Motor Helps

There are legitimate reasons to move up in horsepower, but they should be specific. A larger motor may be appropriate when the lift manufacturer permits it, the boat and lift load have increased within the lift’s rated capacity, and the gear plate and electrical system are rated for the change.

It can also be appropriate when the original motor was undersized for a particular lift configuration. This sometimes appears as slow starts, frequent thermal overload trips, or repeated difficulty lifting even after the cables, pulleys, and gear plate have been inspected.

What a higher-horsepower motor should not be used for is masking a mechanical problem. Frayed cables, seized bearings, poor cable winding, damaged pulleys, low supply voltage, or water intrusion can all make a healthy motor appear weak. Replacing a motor without finding the cause can leave you with the same symptoms and a shorter-lived new motor.

Check These Details Before Ordering

A careful replacement decision usually comes down to a short set of facts. Record the lift brand and rated capacity, then capture the old motor’s horsepower, voltage, amperage, RPM, frame size, and rotation. Confirm whether the lift uses direct drive or a gear plate, and measure the shaft and mounting pattern if those details are not documented.

Also consider how you operate the lift. A wireless remote and auto-stop system can add everyday convenience, but the motor and controls must be compatible with the lift’s wiring and travel limits. Auto-stop is particularly valuable when it is correctly set, helping prevent overtravel that can put unnecessary stress on cables, cradles, and structure.

For hands-on owners, shut off power at the disconnect before inspecting a motor or opening a control box. For uncertain wiring, motor rotation, or load concerns, a qualified lift technician is the right next call. The expense of a compatibility check is small compared with a damaged gear plate or an unsupported boat.

Choose Dependable Operation, Not Just a Number

A replacement boat lift motor is a working component, not a universal appliance. The best choice matches the lift’s capacity and mechanical design, delivers the correct voltage and rotation, and fits the shaft and mounting arrangement without modification. That approach protects the equipment that protects your boat.

Dock Solutions helps waterfront owners make these decisions with purpose-built boat lift motors, motor-matching guidance, and lift-control options that make daily operation easier. Bring your motor specifications and lift details to the selection process, and you can spend less time troubleshooting at the dock and more time getting the boat onto the water.
