Lift Capacitor Testing for Boat Lift Motors

A boat lift that hums but will not raise or lower is more than an inconvenience when the weather is right. It can leave your boat exposed, disrupt a launch, and turn a planned afternoon on the water into a repair call. Lift capacitor testing is one of the most useful early checks when a single-phase boat lift motor has power but struggles to start, starts slowly, or only runs after help is applied.

The capacitor is a small component with a big job. It gives the motor's start winding the phase shift and added energy needed to create starting torque. When it weakens or fails, the motor may no longer have enough force to move the lift from a standstill, especially under the full weight of a boat. Testing it correctly can help separate a capacitor issue from problems with wiring, switches, belts, gear plates, or the motor itself.

What a Boat Lift Capacitor Does

Most residential boat lifts use a single-phase AC motor. Unlike a three-phase motor, it needs help establishing rotation at startup. A start capacitor provides a brief electrical boost to get the motor turning. Depending on the motor design, a run capacitor may remain in the circuit to support efficient operation after startup.

A failed start capacitor often creates a recognizable symptom: the motor hums, but the drive does not turn. You may also notice slow starts, intermittent operation, a breaker that trips during startup, or a motor that runs normally in one direction but struggles in the other. Those signs point toward the capacitor, but they do not prove it is the problem.

A boat lift can also stall because the lift is overloaded, a cable is binding, the brake is not releasing, a gearbox has an issue, or supply voltage is dropping under load. That is why the goal is not simply to replace a part. The goal is to identify the fault without putting the motor, lift, or person performing the work at risk.

Safety Comes Before Lift Capacitor Testing

Capacitors can retain an electrical charge after power is disconnected. Treat every capacitor as energized until it has been safely discharged and verified. This is not a test to perform with the lift plugged in or the breaker on.

Disconnect power at the source, not only at a wall switch or handheld remote. Lock out or clearly mark the breaker so no one restores power while the motor housing is open. If the lift uses wireless control or an auto-stop system, remember that the control equipment does not replace proper electrical isolation at the circuit.

Before touching terminals, inspect the motor and wiring compartment for water intrusion, corrosion, burned insulation, loose connections, or insect nests. Waterfront equipment works in a demanding environment, and a corroded terminal or damaged wire can imitate the same symptoms as a failed capacitor.

If you are not comfortable working around electrical components or cannot confidently identify the capacitor and its wiring, bring in a qualified boat lift technician or electrician. This is particularly wise when the motor is under warranty, the lift has recurring breaker trips, or the electrical system has signs of heat damage.

How to Test a Boat Lift Capacitor

The most reliable method uses a multimeter with a capacitance setting. The capacitor label will state its rated value in microfarads, shown as µF or MFD, along with its voltage rating. A replacement must match the required capacitance specification and meet or exceed the original voltage rating.

1. Document the motor and capacitor information

Take a clear photo of the capacitor label and the wire positions before disconnecting anything. Record the motor horsepower, voltage, model number, and capacitor rating. Boat lift motors can look similar while using different capacitor values, so matching by appearance alone is not dependable.

Also note whether you are looking at a start capacitor, a run capacitor, or a combination unit. Start capacitors are commonly housed in a plastic or metal case and may be tied to a starting switch. Run capacitors are often metal-bodied and designed for continuous duty. The motor wiring diagram is the best reference when available.

2. Disconnect, discharge, and isolate the capacitor

With power confirmed off, disconnect the capacitor leads. Keep the leads separated and label them if needed. A properly rated discharge resistor is the preferred way to safely drain stored energy. Avoid casually shorting terminals with a screwdriver, which can create an arc, damage the terminals, and provide no assurance that the component is safe to handle.

After discharge, follow the meter manufacturer's instructions to verify there is no remaining voltage across the terminals. Only then should you proceed with testing.

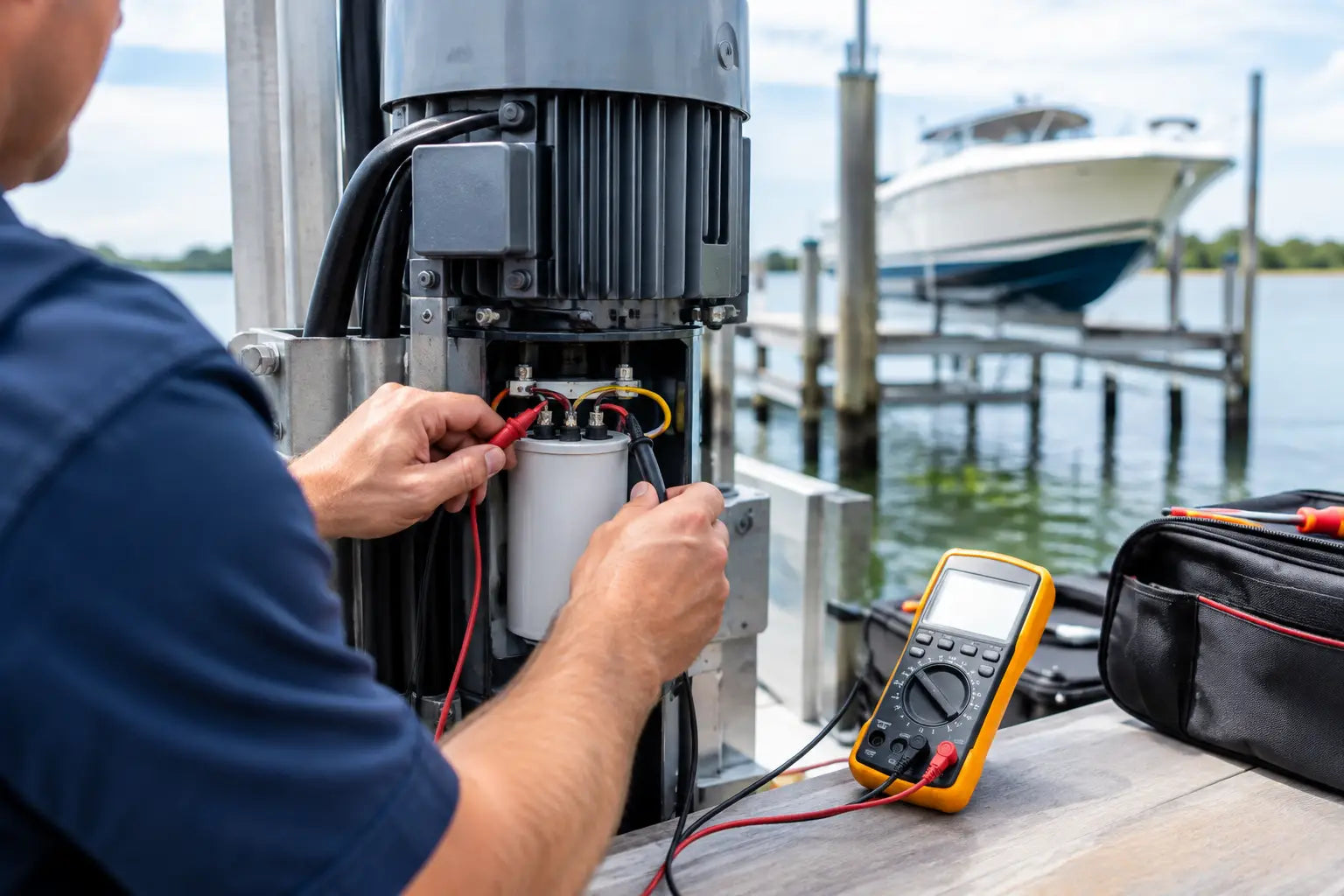

3. Measure capacitance

Set the multimeter to capacitance and connect the probes to the capacitor terminals. Compare the displayed value to the value printed on the label. Many capacitors list an acceptable tolerance, often plus or minus a percentage of the marked microfarad rating.

For example, a 100 µF capacitor with a 10 percent tolerance should generally test between 90 and 110 µF. A reading well below range, a zero reading, an unstable result, or an overload indication usually means replacement is warranted. If your meter does not measure capacitance, it is better to use the right meter than rely on a basic continuity test as a final answer.

A capacitor can also be electrically weak while showing no obvious exterior damage. Still, physical condition matters. Replace it if the case is swollen, leaking, cracked, badly corroded, or shows evidence of overheating. Those conditions are failures even before a meter reading is taken.

4. Look beyond the capacitor if it tests good

A good reading does not clear the entire motor circuit. Check the motor's centrifugal switch or start relay, if equipped, because these components control the start circuit. Examine terminals for looseness and discoloration, confirm the incoming voltage matches the motor requirement, and inspect the lift for mechanical resistance.

Voltage deserves special attention. A 120-volt or 240-volt motor may appear to have power when checked at rest but experience a substantial voltage drop when asked to lift a boat. Undersized wiring, long runs, weak connections, or a failing receptacle can all reduce starting torque and put extra stress on the motor.

Choosing the Right Replacement Capacitor

Do not select a capacitor based only on shape, mounting style, or a close microfarad number. The replacement must have the correct µF rating for the motor. A higher voltage rating is generally acceptable when the physical size and terminal arrangement fit, but changing the capacitance value can cause poor starting, overheating, reduced performance, or motor damage.

Use a component designed for motor duty and suitable for the application. The capacitor should fit securely inside the motor's capacitor cover or approved enclosure, with terminals protected from moisture and vibration. On a boat lift, a loose component can become a wiring problem quickly.

Before ordering, verify the motor's horsepower, voltage, frame or model number, and capacitor specifications. This is where motor-matching guidance saves time. A 1 HP motor and a 1.5 HP motor may use different start components even if both are installed on similar-looking direct-drive lifts.

When a Capacitor Problem Is Really a Lift Problem

If a new, correctly rated capacitor fails quickly, stop replacing capacitors and investigate the cause. Repeated failures often indicate excessive heat, low voltage, a defective start switch, incorrect wiring, or a mechanical load that the motor is not designed to overcome.

Check that the boat and lift capacity are properly matched. Look for binding cables, worn pulleys, misalignment, poor lubrication where required by the lift manufacturer, or gearbox issues. A motor that is fighting a mechanical problem draws more current and generates more heat, shortening the life of capacitors and windings alike.

This is also a good time to consider how the lift is operated. Reliable wireless control and correctly set auto-stop limits can reduce unnecessary strain at the top and bottom of travel. They will not correct a failing motor circuit, but they help protect a healthy system from avoidable overrun and operator error.

A properly tested capacitor can be a straightforward fix, but the real win is restoring dependable lift operation before a small starting issue sidelines your boat. When the motor, control system, and lift mechanics are working together, getting on the water stays the easy part of waterfront ownership.
