Lift Control Upgrade Example for Boat Owners

A boat lift that only works from a wall-mounted switch can turn a simple departure into a routine: park the boat, climb onto the dock, operate the lift, then head back to the house. This lift control upgrade example shows how a private dock owner can replace that routine with wireless control and auto-stop protection while keeping the existing lift structure, motor, and gear plate in service.

The goal is not to add technology for its own sake. It is to make lift operation more convenient, prevent common overtravel mistakes, and help protect the boat, cables, bunks, and lift components that support time on the water.

A Lift Control Upgrade Example: From Wall Switch to Wireless Auto-Stop

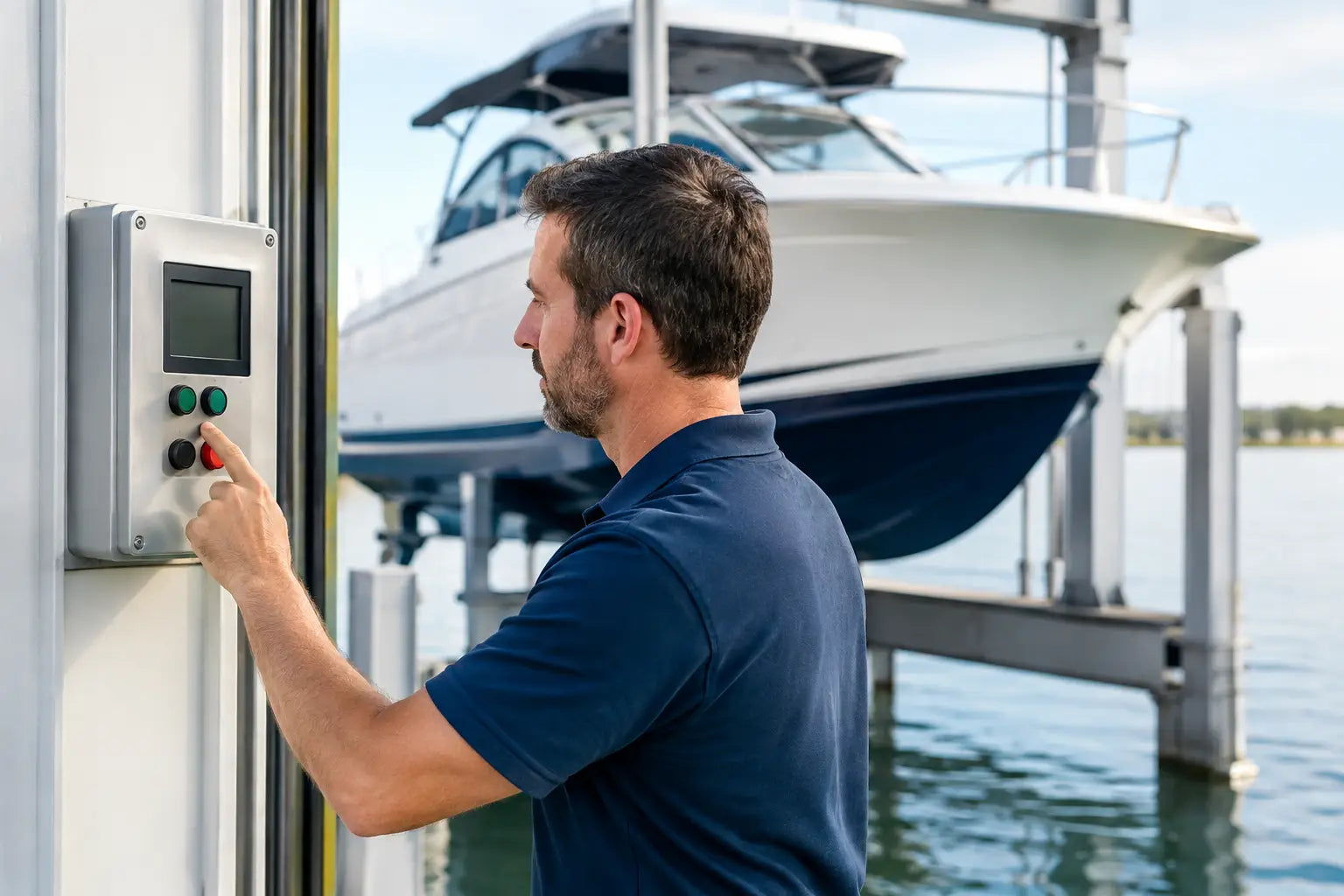

Consider a common setup: a 6,000-pound capacity boat lift with a functioning 1-horsepower motor, a standard gear plate, and a hardwired up/down switch mounted on a dock post. The lift raises and lowers the boat properly, but the owner has to stand at that switch every time. The family also shares the dock, so not everyone knows exactly when to release the switch at the top of travel.

In this case, replacing the entire lift would be unnecessary. The practical upgrade is a compatible wireless remote control system with auto-stop capability. The receiver is installed at the lift's control point, the remote provides hand-held up/down operation, and the auto-stop system shuts the motor off at the selected upper travel position.

That combination changes how the lift is used. The owner can raise the boat after stepping off the dock, lower it while preparing to leave, and hand a simple remote to a trusted family member without relying on them to judge the lift's stopping point. The original motor remains part of the system, provided its voltage, horsepower, wiring configuration, and control compatibility are confirmed first.

Why This Upgrade Solves More Than a Convenience Problem

Wireless lift control is often purchased for convenience, but its bigger value is predictable operation. A fixed switch encourages the operator to stay in one place. A wireless remote lets the operator watch the boat, bunks, canopy clearance, and cables from the position that makes the most sense.

That matters when water levels change, passengers are boarding, or the boat is settling onto bunks after a windy return. Better visibility can help an owner notice a fender out of place, a dock line caught near the lift, or a boat that is not centered before continuing upward.

Auto-stop adds another layer of protection. Without it, an operator has to release the control at precisely the right point every time. Holding the lift too long can put unnecessary strain on cables, pulleys, drive components, and the boat lift motor. An auto-stop switch does not replace attention at the dock, but it creates a repeatable upper limit for normal operation.

For a waterfront owner who uses the lift every weekend, that repeatability is valuable. For a vacation property where guests or adult children may operate the lift, it can be even more useful.

Start With Compatibility, Not the Remote You Like Best

A control upgrade must match the lift it will operate. Before choosing a wireless remote or auto-stop package, identify the motor and lift details already in place. The motor nameplate is the best starting point. It should show horsepower, voltage, phase, amperage, and whether the motor is reversible.

Most residential boat lift upgrades involve a 120-volt or 240-volt single-phase motor. The correct control system must be rated for that electrical setup and for the motor load. A remote system that works for one lift may not be appropriate for another simply because the housings look similar.

The gear plate and drive arrangement also matter. A direct drive lift, belt-driven system, and chain-driven system can each have different mounting and control considerations. Check whether the existing lift uses a drum switch, contactor, momentary switch, or another control arrangement. If the original wiring has been modified over the years, do not assume its current layout follows the motor's factory diagram.

For older lifts, the best upgrade may include a new control box rather than trying to adapt a receiver to aging switches and weathered connections. That adds cost, but it can be the smarter choice when corrosion, brittle wire insulation, or inconsistent operation is already present.

Choosing Between Wireless Control and Auto-Stop

Not every dock needs the same level of control. A dependable wireless remote is often enough for an owner who wants to eliminate trips to the fixed switch and can clearly see the lift's travel. It is a straightforward convenience upgrade for a well-maintained lift with an experienced operator.

Adding auto-stop makes more sense when the boat is lifted frequently, multiple people use the dock, or the top stopping point is difficult to judge. It is also a strong fit for owners who want to protect a canopy frame or maintain consistent clearance between the boat and dock structure.

There is a trade-off. Auto-stop installation requires careful adjustment. Set the limit too low and the boat may not clear the water as intended. Set it too high and the lift can still approach overtravel. The stop point should be tested with the actual boat in its normal position, not with an empty lift or an assumption based on cable travel alone.

A remote with multiple transmitters can also be useful for families. One remote can stay at the house while another remains secured in the boat. Treat every transmitter like a lift key, however. Keep it dry, store it where children cannot operate it unsupervised, and replace damaged cases or buttons before they become unreliable.

Installation Details That Protect the Upgrade

The receiver and control components belong in an enclosure suited to the dock environment. Moisture, sun exposure, temperature swings, insects, and airborne salt near coastal water can shorten the life of poorly protected electrical equipment. Use the proper weather-rated box, cable fittings, and strain relief for the installation.

Power should be disconnected at the breaker before any wiring work begins. Confirm the circuit is de-energized rather than relying on the switch position. A boat lift motor can involve hazardous voltage, and incorrect wiring can damage the motor, receiver, or capacitor components.

Follow the wiring diagram supplied for the specific control system and motor. In many installations, the remote receiver works with the existing reversing circuit rather than directly powering the motor by itself. Wire colors are not a substitute for the diagram, especially on a lift that has been serviced by more than one owner or technician.

After installation, test lift travel in short increments. First verify that up and down commands move the correct direction. Then test the auto-stop at low speed and make small adjustments until the boat reaches its intended stored height. Watch the cables wind evenly, confirm the boat remains centered on the bunks, and make sure no dock accessory, guide post, or canopy component interferes with travel.

If the lift hesitates, hums without lifting, trips a breaker, or operates only in one direction, stop troubleshooting from the remote alone. The issue may be a weak capacitor, failing contactor, worn motor, damaged cable, or mechanical binding. A control upgrade cannot correct a lift that needs mechanical service.

When a Motor Replacement Should Be Part of the Project

Sometimes a remote upgrade exposes a motor problem that was already developing. A motor that has been slow to start, unusually hot, noisy, or unreliable after rain may not be a good candidate for new controls alone.

In that situation, match the replacement motor to the lift's horsepower requirement, voltage, rotation needs, frame style, and mounting arrangement. A TENV motor is commonly chosen for boat lift use because its totally enclosed, non-ventilated design helps limit exposure to moisture and debris. It still needs correct installation and protection from direct spray and standing water.

Replacing the motor and controls together can reduce repeated labor, particularly when the old wiring and switch hardware are also nearing the end of their service life. Dock Solutions can help owners organize the motor-matching and control-selection details before parts are ordered, which is especially helpful when a lift's original paperwork is long gone.

A Better Routine at the Dock

Once the system is installed, establish a simple operating habit. Before lifting, make sure passengers are clear, loose gear is off the boat, and dock lines will not catch. Raise the boat while watching its position on the bunks. Even with auto-stop, stay close enough to respond if something shifts or binds.

A well-chosen control upgrade should feel less like another piece of equipment to manage and more like a dependable part of the dock. When the lift responds from the right spot, stops where it should, and supports the boat properly, the end of a day on the water stays where it belongs: on the water, not at a troublesome switch.
