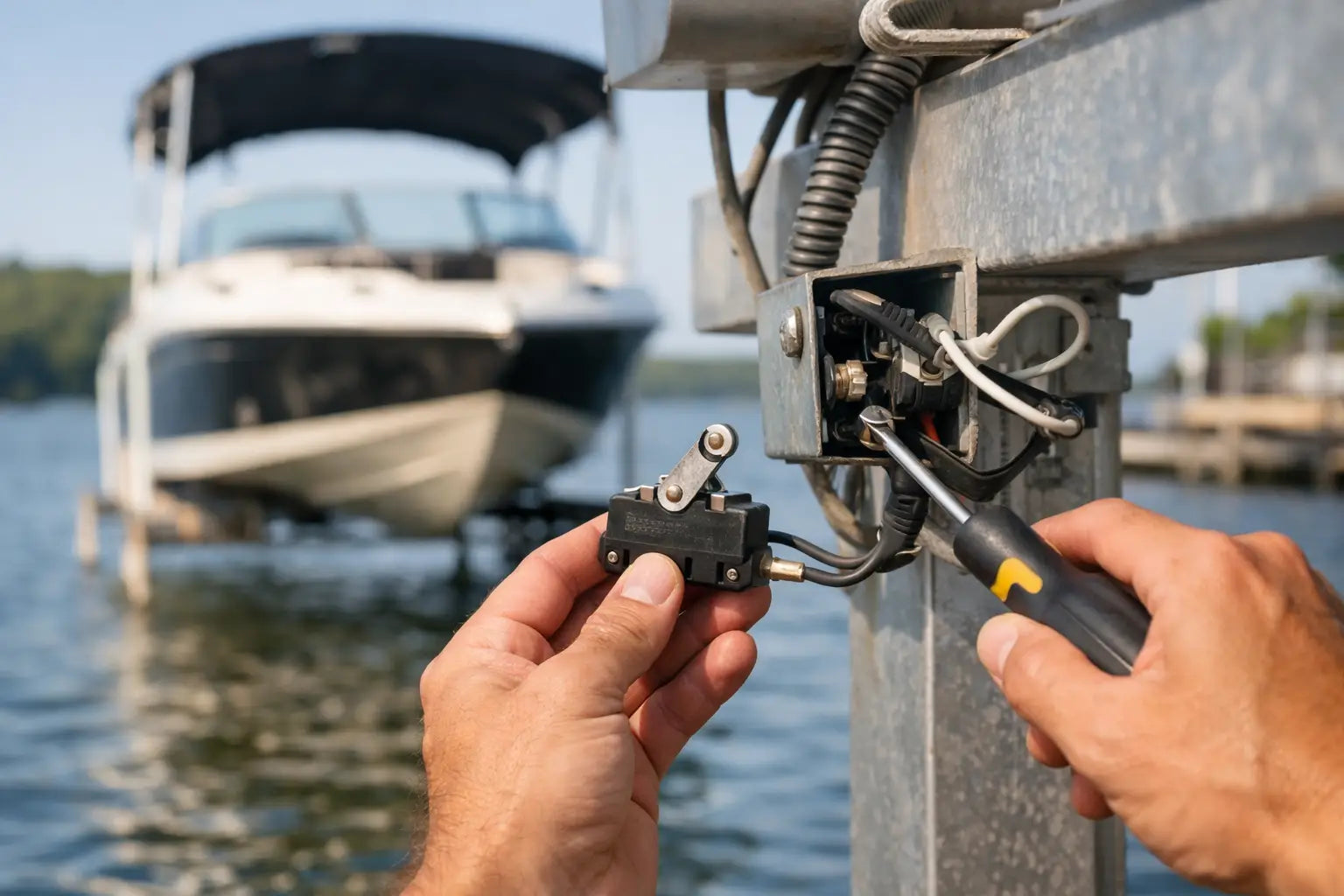

How to Replace Boat Lift Limit Switch Safely

A lift that stops short, travels too far, or will not stop at all can turn a good lake day into a dockside repair project. When you need to replace boat lift limit switch components, the goal is not simply to get the motor moving again. The switch must be compatible with your lift controls, correctly wired, and adjusted so your boat stops at a safe height every time.

A properly working limit switch protects the lift, boat, cables, and dock structure by controlling the upper and lower travel range. Whether your system uses a mechanical actuator, a cam-style switch, or an auto-stop control assembly, careful identification and adjustment matter as much as the replacement part itself.

Know What the Limit Switch Controls

The limit switch is the safety checkpoint in an electric boat lift system. It tells the motor or control circuit when to stop raising or lowering the cradle. On many lifts, the upper limit is the primary concern because it prevents the boat from being lifted into the gear plate, canopy frame, dock structure, or cable components.

Some systems use a simple upper-stop switch. Others use separate upper and lower limits, a rotary limit switch mounted near the drive, or an integrated control package paired with a wireless remote. A remote that includes auto-stop functions may rely on a specific switch assembly or wiring arrangement. That is why a switch that looks similar is not always a direct replacement.

Before ordering or installing anything, identify the lift manufacturer, motor voltage, control style, and the existing switch design. Take clear photos of the switch, mounting bracket, wire terminals, actuator arm or cam, and any labels inside the control box. Those details help confirm whether you need a replacement switch only, a complete limit assembly, or a new auto-stop remote control system.

Signs It Is Time to Replace a Boat Lift Limit Switch

A limit switch does not always fail all at once. It may become intermittent after seasons of moisture, vibration, corrosion, sun exposure, or repeated contact with the actuator. The lift may stop inconsistently, require repeated button presses, or run past its normal stopping point.

Common warning signs include a lift that continues upward after reaching its usual position, stops before the boat is fully raised, runs in one direction but not the other, or responds only when the switch arm is moved by hand. A switch housing with cracked plastic, corroded terminals, loose mounting hardware, or damaged wire insulation should also be addressed before it creates a larger electrical issue.

Do not assume the switch is automatically at fault. Similar symptoms can come from a failed remote receiver, worn contactor, sticking relay, damaged pendant control, loose connection, or a motor problem. If the lift has been sitting unused, inspect the complete control path before replacing parts. Confirming the cause first saves time and avoids ordering a component that will not solve the problem.

Match the Replacement to Your Lift System

Compatibility comes first. Boat lift switches vary by voltage rating, current rating, terminal configuration, actuator type, mounting pattern, and whether they are normally open or normally closed. A switch may also be designed to interrupt only one control circuit while another lift system requires a different contact arrangement.

Start with the part number on the old switch, if available. If it is unreadable, use the lift make and model along with motor details such as 120V or 240V, horsepower, and direct-drive or gear-reduction configuration. A 1 HP lift motor and a higher-capacity setup may use different controls even when the switch housing appears nearly identical.

For a lift equipped with a wireless remote or auto-stop system, verify compatibility with that control package specifically. Replacing a basic mechanical switch with an incompatible component can disable automatic stopping or cause the lift to operate in only one direction. Dock Solutions can help owners compare lift details and control requirements before choosing replacement equipment.

Shut Down Power Before Opening the Controls

Boat lifts combine electricity, water, moving cables, and heavy loads. Treat the work accordingly. Turn off the dedicated breaker at the shore power source or disconnect, then verify that the control box has no power before touching terminals or wiring. Do not rely on a remote, pendant button, or wall switch as your only shutoff.

Keep the boat out of the work area if possible. The lift should be stable, unloaded when practical, and positioned so no one is beneath the cradle or near moving parts. If the switch failure has left the boat in an unsafe position, or if you cannot safely de-energize the circuit, this is the point to call a qualified lift technician or licensed electrician.

Before disconnecting the old component, label every wire. Small pieces of numbered tape, a marker, and several photos can prevent a frustrating rewire later. Record which terminal each wire used, not just its color. Wire colors are helpful, but terminal designations and the original wiring path are more reliable.

Replacing the Switch Without Creating a New Problem

Once power is confirmed off, remove the control box cover and inspect the interior. Look for heat discoloration, water intrusion, corroded connectors, brittle insulation, or loose terminals. If the old switch failed because the enclosure is allowing moisture inside, install the new switch without correcting that issue and the replacement may not last.

Remove the mounting screws or retaining hardware, then disconnect the labeled wires one at a time. Avoid pulling on conductors. If a terminal is seized with corrosion, support the connector and work slowly so you do not break the wire or damage a nearby relay.

Mount the new limit switch in the same orientation as the original. The actuator lever, roller, plunger, or cam follower must align with the moving trip point. A switch mounted slightly out of position may work during a hand test but miss the actuator under normal lift vibration.

Reconnect the wires to the matching terminals and tighten them securely. Do not overtighten small terminal screws, especially on plastic-bodied switches. Confirm that no bare conductor is exposed and that wires are routed clear of gears, belts, shafts, and the path of the actuator. Reinstall the enclosure cover before restoring power so the system remains protected from spray and weather.

Set the Travel Limits Carefully

A new switch may need adjustment even when it is physically identical to the old one. The correct upper stop point depends on your boat, bunks, guide-ons, canopy clearance, and dock layout. You want enough height to keep the hull protected from wake and water movement, without placing the boat or lift components in a bind.

Restore power and test the lift with everyone clear of moving parts. Use short, controlled movements rather than holding the up button continuously. Watch the switch actuator or cam as the lift approaches the upper travel position. The switch should trip before the cradle reaches any hard stop or obstruction.

Then test the lower travel setting, if your system uses one. The cradle should lower far enough for safe launch and loading, but it should not continue until cables go slack, wrap improperly, or contact the lake bottom. Adjust in small increments and retest after every change.

If you have an auto-stop wireless remote, test each control method after adjustment. The handheld remote, wall control, and any manual override should all stop the lift at the intended positions. A system that works from the pendant but not the remote usually points to control wiring or receiver configuration, not necessarily the new limit switch.

Do Not Skip These Final Checks

Before putting the lift back into regular service, inspect the full operating cycle. Raise and lower the cradle while listening for unusual clicking, relay chatter, binding, or motor strain. Check that cable wraps remain even and that no wire, switch arm, or actuator is rubbing against moving hardware.

It is also worth checking the control box gasket, cord grips, grounding connection, and mounting hardware while the enclosure is open. Small maintenance items can prevent the moisture and vibration damage that often shortens switch life. For waterfront equipment, a dry, secure control enclosure is part of dependable operation.

If the lift still overruns after the switch replacement, shut it down rather than bypassing the limit circuit. Bypassing a safety control can damage the lift or create a serious hazard. Recheck the switch position, terminal connections, actuator alignment, and compatibility with the motor control system. When those items check out, professional diagnosis is the smart next step.

A correctly selected and adjusted limit switch lets your lift do what it is supposed to do: raise your boat with confidence, stop where it should, and leave you free to spend more of the day enjoying life on the water.
