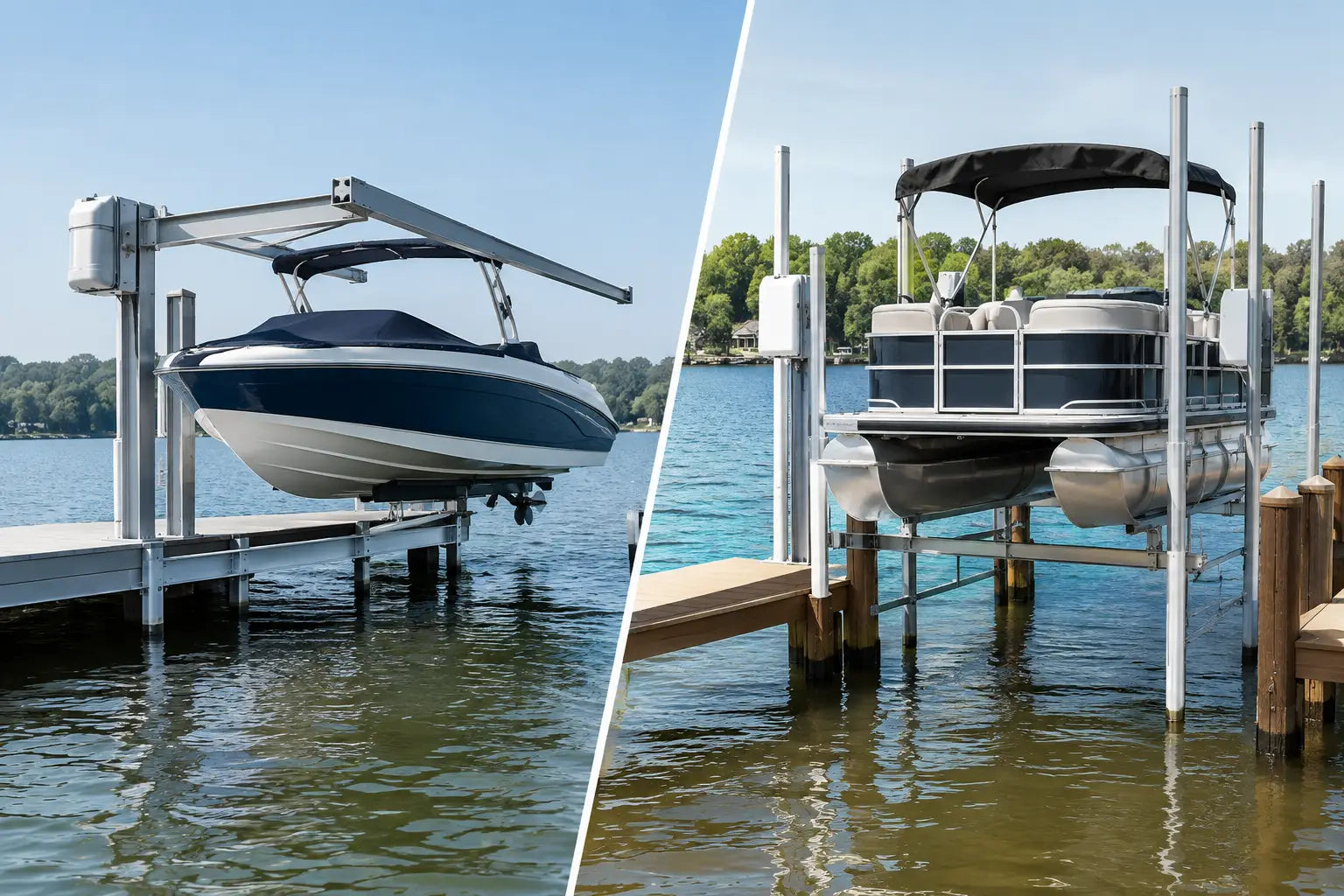

Cantilever Versus Vertical Boat Lifts Compared

A boat lift should fit the water beneath your dock as well as the boat above it. When comparing cantilever versus vertical boat lifts, the right answer usually comes down to water depth, lift capacity, seasonal conditions, and how much convenience you want every time you arrive at the dock. Both lift styles protect a boat from hull staining, wave action, and long periods in the water. Their operating geometry, however, is very different.

Cantilever Versus Vertical Boat Lifts: The Core Difference

A cantilever lift raises a boat using a set of pivoting arms. As the lift moves, the cradle travels up and inward through an arc rather than moving straight vertically. This design has been a familiar choice on lakes and protected waterways for generations because it is mechanically straightforward, often economical, and well suited to many smaller and mid-size boats.

A vertical lift raises and lowers the cradle straight up and down between its upright structure. Cable systems, gear plates, winches, and drive components work together to give the boat more vertical travel. That extra travel is a major advantage where water levels change, wake conditions are more active, or the boat must be raised higher above the waterline.

Neither design is automatically better. A properly sized cantilever lift can be an excellent long-term choice for the right boat and shoreline. A vertical lift can be the clear winner when capacity, height, and changing water conditions matter more than initial simplicity.

When a Cantilever Lift Makes Sense

Cantilever lifts are often a practical fit for protected water, relatively consistent water levels, and owners who want reliable boat storage without adding more lift than their site requires. Because the structure is generally less complex, this lift style can be easier to understand, maintain, and operate manually when needed.

The key benefit is its ability to work in shallower water than many vertical lift configurations. The cradle does not need to travel as far below the boat to provide useful lifting height, although actual requirements depend on the lift model, boat hull shape, and bottom conditions. For a small fishing boat, runabout, aluminum pontoon, or personal watercraft setup at a shallow lakefront property, that can be a meaningful advantage.

Cantilever lifts also make sense where the boat is used in a predictable pattern. If water levels remain stable through the season and your lift only needs enough height to keep the hull clear of normal waves, the added travel of a vertical lift may not be necessary.

There are limits to consider. A cantilever lift's diagonal movement requires room around the frame and can affect how the boat loads onto the bunks. Its available lifting range is typically lower than a comparable vertical model. As boat size, dry weight, fuel load, gear, and passenger capacity increase, a cantilever lift can become less practical. A lift should never be selected solely from the boat's published dry weight. Include batteries, full fuel, engines, towers, fishing equipment, and every accessory that stays aboard.

Why Vertical Lifts Handle More Demanding Conditions

Vertical lifts are built for owners who need greater lifting height and a wider range of capacity options. Their straight-up movement gives the boat a more consistent travel path and can provide valuable clearance when water levels rise, waves build, or the dock sees regular boat traffic.

That matters on larger lakes, rivers, canals with wake exposure, and waterfronts where seasonal water fluctuations are part of ownership. Raising the hull well above the water helps reduce the chance that wave action repeatedly contacts the boat while it is stored. It also gives more flexibility when a high-water event changes the clearance you normally count on.

A vertical lift is commonly the better match for heavier fiberglass boats, larger pontoons, wake boats, deck boats, and boats with substantial equipment. The exact capacity still depends on the manufacturer and model, but vertical designs are widely available in higher capacities than typical cantilever units.

The trade-off is that a vertical lift usually requires more water depth to operate through its full range. The frame, cradle, and lowered boat must all have adequate clearance from the lake or river bottom. Soft bottoms, uneven slopes, and changing sediment can affect setup. Before choosing a lift, measure water depth at several points within the lift footprint, not just at the end of the dock. A technician or experienced dock professional can help account for seasonal low water, which is often the measurement that determines whether a lift will remain usable.

More lift travel is not just about high water

Extra travel can make routine boating easier, too. A boat that lifts high enough for comfortable loading, cleaning, and inspection is easier to keep in good condition. It can also provide more room for a canopy, guide system, or dock layout that needs clear working space.

Still, more travel introduces more components to inspect. Vertical lifts rely on cables, pulleys, sheaves, winches, and drive parts that should be checked regularly. This is not a drawback when the lift is maintained properly. It is simply part of owning equipment designed to carry more weight through a greater distance.

Compare Your Waterfront Before You Compare Prices

Price matters, but it should come after fit. The lowest-cost lift can become the expensive choice if it cannot operate at low water, lacks capacity for a future boat, or sits too low to protect the hull during rough conditions.

Start with your boat's fully loaded weight and beam. Then consider the motor or motors, a hardtop or tower, ballast equipment, spare batteries, coolers, fishing gear, and any accessories that remain onboard. Choose capacity with a safety margin rather than trying to match the lift's rating exactly to the boat's estimated weight.

Next, assess water depth, bottom firmness, and seasonal changes. A firm, relatively level bottom supports a predictable installation. A soft or irregular bottom may call for different leg pads, leveling attention, or a lift style and setup recommended for the site. If your water drops significantly in late summer or fluctuates after dam releases and storms, plan around the lowest expected operating level.

Finally, look at exposure. A quiet cove and an open shoreline may be only a few hundred yards apart, yet they can require very different protection. If wind, passing wakes, or current regularly move the boat while it is on the lift, greater vertical clearance and properly adjusted guides can make a noticeable difference.

Controls and Motors Should Match the Lift

A boat lift becomes more useful when operation is easy enough to do correctly every time. Manual operation may be perfectly workable for a lighter cantilever lift used occasionally. For many owners, though, a properly matched electric motor and wireless control system turn lift operation into a simple part of arriving and leaving the dock.

Motor selection is not one-size-fits-all. Horsepower, voltage, gear plate configuration, lift capacity, and drive style all matter. A direct drive setup may require a different motor solution than a lift using a particular gear unit or winch arrangement. TENV motor specifications can also be important in waterfront environments where moisture and dependable operation are everyday concerns.

Wireless remotes and auto-stop systems add convenience, but they should be selected for compatibility with the existing motor, switch, and lift configuration. Auto-stop protection can help stop the lift at a set upper point, reducing the risk of over-travel caused by holding a control too long. It does not replace routine inspections or proper cradle adjustment.

Dock Solutions helps waterfront owners sort through these details with motor-matching and wiring guidance, so upgrades can be chosen around the lift already in place rather than guessed at from a photo or a general capacity rating.

Maintenance Priorities for Each Style

Every lift benefits from a regular visual check before the boating season and throughout periods of heavy use. Look for frayed or flattened cables, worn pulleys, loose hardware, bent components, uneven lifting, cracked bunks, and signs that the frame has shifted in the bottom. Keep the boat centered on the cradle and make sure guides still bring it into the correct loading position.

For cantilever lifts, pay close attention to pivot points, moving arms, winch components, and the way the cradle rises. Uneven movement can place unnecessary stress on the structure or leave the boat sitting out of level.

For vertical lifts, inspect cables and sheaves carefully, confirm that the lifting corners rise evenly, and watch for unusual noise from the motor, gearbox, or drive system. Stainless steel hardware is a smart choice in many marine environments, but even corrosion-resistant components need periodic inspection, especially in brackish or coastal conditions.

Choose for the Boat You Use and the Water You Have

Choose a cantilever lift when shallow water, stable conditions, straightforward operation, and a lighter boat point in that direction. Choose a vertical lift when you need higher capacity, more lifting height, flexibility for changing water levels, or better clearance from regular wave action.

The best lift decision is the one that protects your current boat without limiting the way you use your waterfront. Measure carefully, account for real operating conditions, and build in room for the unexpected. A lift that fits your dock, your water, and your boating routine makes it easier to spend less time managing equipment and more time ready for the next day on the water.
